The B140HAN07.1 (Product Code: AUO8291) is a 14.0-inch a-Si TFT-LCD module product launched by AUO. It features a WLED backlight with LED driver backlight drive and is non-touch. The operating temperature range is 0 ~ 50°C, the storage temperature range is -20 ~ 60°C, and the vibration resistance is 1.5G (14.7 m/s²). Its key characteristics include: white LED backlight with LED driver, flip-chip terminals, matte surface finish, eDP1.2, DP/N 0D5MVF. Based on these features, this model is recommended for applications such as laptops.

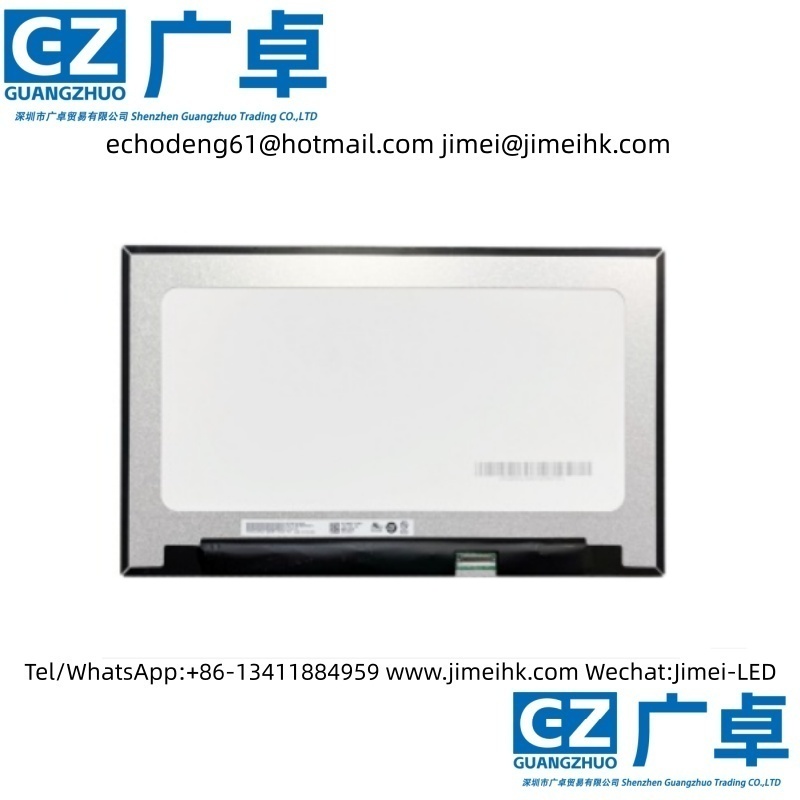

B140HAN07.1 FHD IPS LED 液晶显示器屏幕
B140HAN07.1
面板品牌:友达 (AUO)
面板型号:B140HAN07.1
面板尺寸:14.0英寸
面板类型:a-Si TFT-LCD, 液晶模组
分辨率:1920(RGB)×1080, FHD, 157PPI
像素布局:RGB垂直条状
显示区域:309.37(W)×174.02(H) mm
外观尺寸:315.87(W)×187.68(H)×5.25(D) mm
表面处理：雾面，Hard coating (3H)，反射率 4.3% (Typ.)
显示亮度：250 cd/m² (Typ.)
对 比 度：700:1 (Typ.) (透射)
推荐视角:全视角
响应时间:25 (Typ.)(Tr+Td) ms
可视角度:85/85/85/85 (Typ.)(CR≥10) 左 / 右 / 上 / 下
显示模式:AHVA，常黑显示，透射式
支持颜色:16.2M , 45% NTSC
光源类型:WLED , 15K小时 , 含LED驱动器
外观样式:薄屏 (PCBA弯折, 厚度≤3.0mm)
应用产品:笔记本
帧频率:60Hz
触摸技术:无触摸
接口类型:30 pins eDP (2 Lanes) , eDP1.2 , 端子
电压供应:3.3V (Typ.)
应用环境:工作温度: 0 ~ 50 °C ; 存储温度: -20 ~ 60 °C
