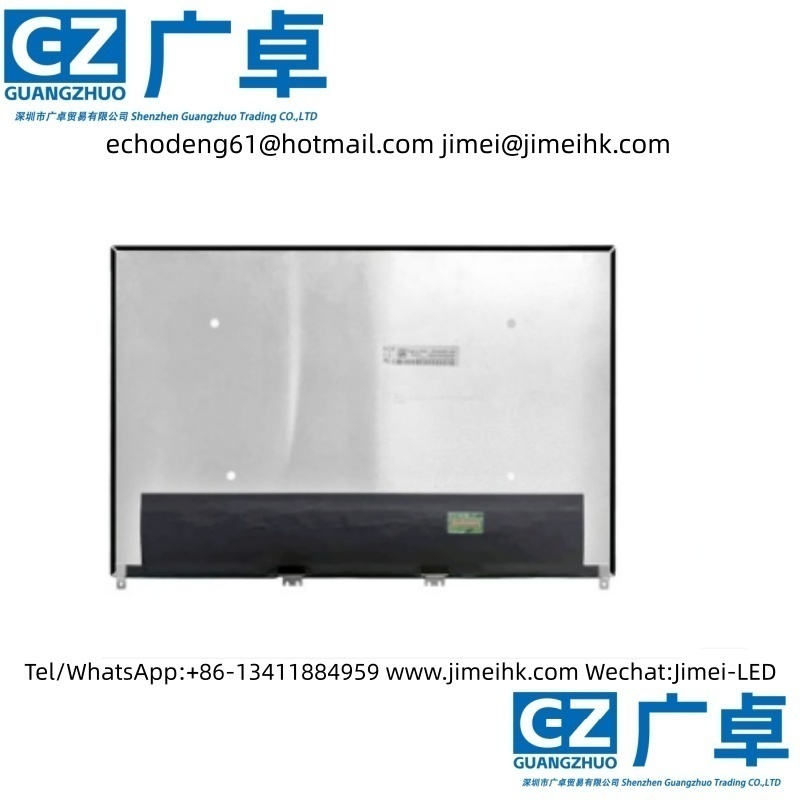

The NV140WUM-N6A (product code: BOE0B44) launched by BOE is a 14.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight and touch free. Its typical features are: sRGB, white LED backlight, inverted terminals, eDP1.3, LBL, PSR, Adjust backlight brightness with DC mode, DELL DPN: G9FC5. Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in laptops.

The NV140WUM-N6A has a display resolution of 1920 (RGB) × 1200 (WUXGA), with an aspect ratio of 16:10 (width:height). The pixels are arranged in vertical RGB stripes. Its active display area measures 301.594 × 188.496 mm (width × height), while the overall dimensions are 306.6 mm (width) × 195.35 mm (height) × 4.08 mm (thickness). The surface treatment is hard coating (3H), and the net weight is 240 g (maximum). It features a slim screen design (with PCBA bending, thickness ≤ 3.0 mm).

For backlighting, this product uses WLED (white light-emitting diode) edge-lit illumination (bottom side), with a lifespan of 15,000 hours. The NV140WUM-N6A adopts an eDP (Embedded DisplayPort) signal interface with 2 lanes, totaling 30 pins, connected via a terminal. The driving voltage for the panel is 3.3V (typical). Its typical vertical refresh rate Fv is 60 Hz
