B150HAN01.0 (product code: AUO107D) is a 15.0-inch a-Si TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Summary: sRGB, white LED backlight, including LED driver, inverted terminals, and matte surface. Based on its features, this model is recommended for use in laptops and other products.

B150HAN01.0 has a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripe configuration. Its active display area measures 331.2 (width) × 186.3 (height) mm, while the overall dimensions are 335.28 (width) × 206.54 (height) × 4.5 (thickness) mm. The surface finish is matte, and the net weight is 250g (maximum). The product features a slim panel design (with PCBA bending, thickness ≤ 3.0 mm).

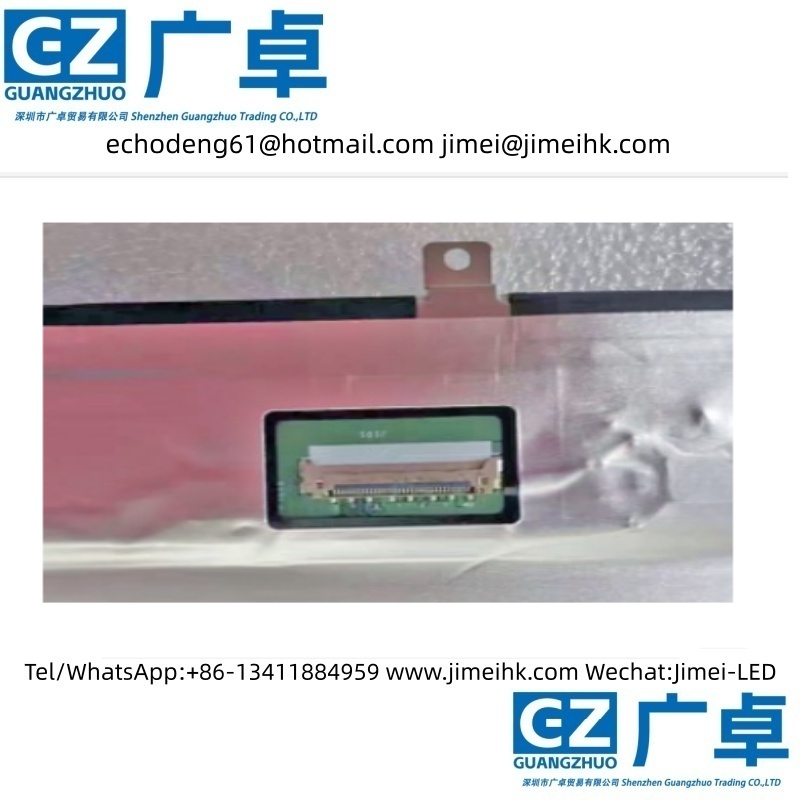

In terms of backlighting, this model uses WLED (white LED) edge-lit illumination, with a light source lifespan of 15,000 hours, including an LED driver. B150HAN01.0 adopts an LVDS signal interface (2 channels, 6-bit), with a total of 30 pins connected via a terminal. The panel driving voltage is 3.3V (typical), and its typical vertical refresh rate Fv is 60Hz.
