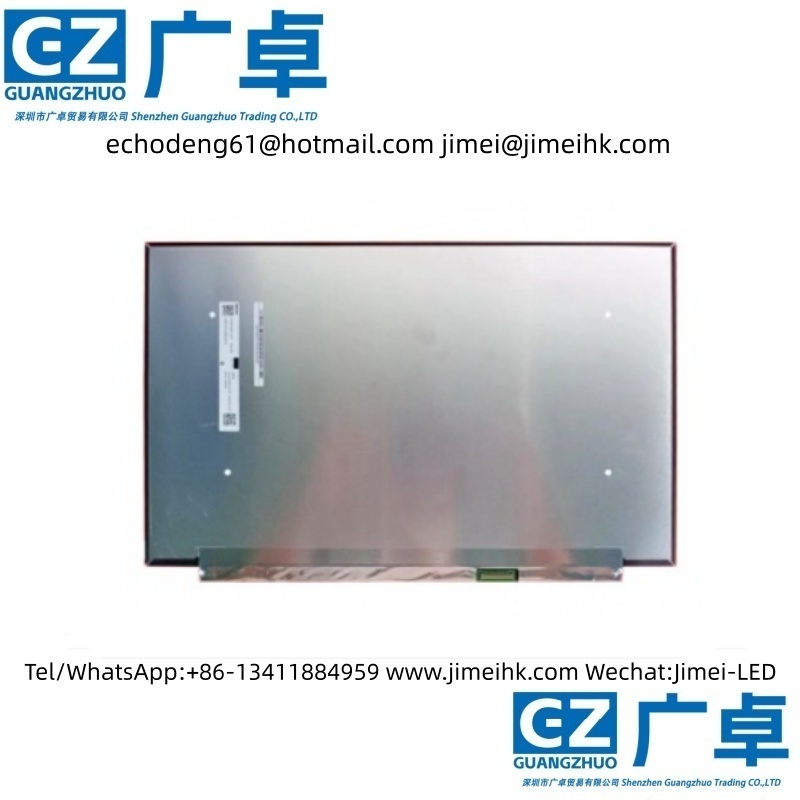

The LP140WF9-SPR1 (alias: LP140WF9 (SP)(R1)) (product code: LGD0726), launched by LG Display, is a 14.0-inch LCD module product that utilizes a-Si TFT-LCD technology. It is equipped with WLED backlighting, including an LED driver for backlight control, and has no touch functionality.

sRGB, white light LED backlight, including LED driver, terminal flip-chip, matte surface.AMD FreeSync， eDP1.4, PSR2, sDRRS, SSC, NVSR, AMD Free sync。

The operating temperature is 0 to 50°C, the storage temperature is -20 to 60°C, and the vibration resistance is 1.0G (9.8 m/s²). This model is suitable for use in laptops

According to the product specification document (Version No. Ver1.0) released by LG Display on February 18, 2022, the LP140WF9-SPR1 has a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height), and features RGB vertical stripe pixel arrangement.

Its display area measures 309.31 × 173.99 mm (width × height), while the outline dimensions are 315.81 (width) × 197.57 (height) × 3 (thickness) mm. The surface treatment is matte with hard coating (3H), and the net weight is up to 260 g (max.). The appearance style is slim screen (flat PCBA, thickness ≤ 3.2 mm).

For backlighting, this product uses WLED (white LED) side-lit illumination with a light source lifespan of 15,000 hours, including an LED driver.

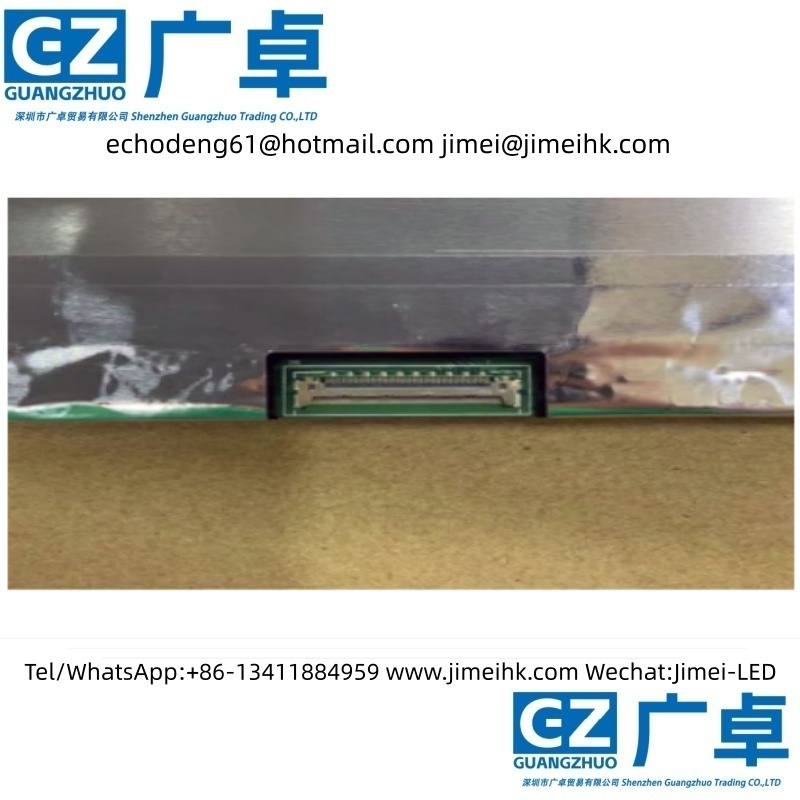

The LP140WF9-SPR1 adopts an eDP (2 Lanes) signal interface with a total of 30 pins connected via terminal connectors. The panel driving voltage is 3.3 V (typical). Its typical vertical refresh rate Fv is 60 Hz.
