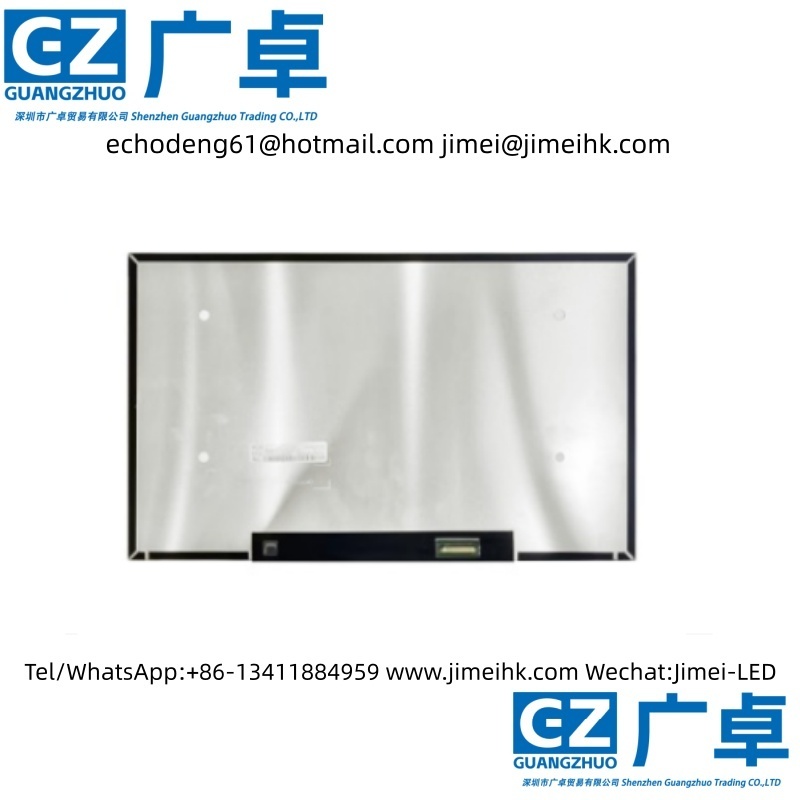

NV140FHM-N40 (Product Code: BOE0B5F) is a 14.0-inch a-Si TFT-LCD module launched by BOE. It is equipped with a WLED backlight, including an LED driver for backlight driving, and does not support touch function. The operating temperature of this product ranges from 0 to 50°C, the storage temperature ranges from -20 to 60°C, and it has a vibration resistance of 1.5G (14.7 m/s²).

White LED backlight, including LED driver, inverted terminal, matte surface, AMD FreeSync, eDP1.2, FreeSync

The NV140FHM-N40 display has a resolution of 1920(RGB)×1080 (FHD), an aspect ratio of 16:9 (width:height), and uses an RGB vertical stripe pixel arrangement. Its active area measures 309.31mm (width) × 173.99mm (height), and its overall dimensions are 315.012mm (width) × 184.838mm (height) × 5mm (thickness). The surface features a matte finish with Hard Coating (3H), and the product’s net weight is 290g (Max.). Its appearance is that of a slim panel (with PCBA bent, thickness ≤ 3.0mm).

For the backlight, this product uses a 9S6P WLED edge-lit light source (bottom entry). The light source has a lifetime of 15K hours and includes an LED driver. The NV140FHM-N40 utilizes an eDP (2 Lanes) signal interface with a total of 30 pins, connected via a connector. The driving voltage is 3.3V (Typ.), and its typical vertical refresh rate (Fv) is 60Hz.
