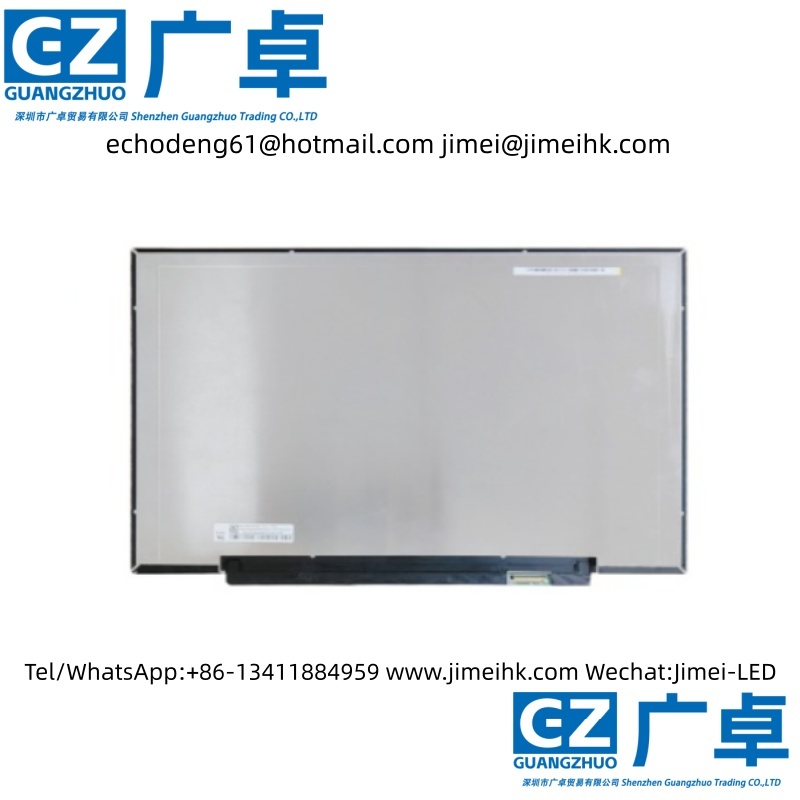

NV140WUM-N4H (Model Number: BOE0CE3) is a 14.0-inch a-Si TFT-LCD module launched by BOE. It is equipped with WLED backlight, including an LED driver for backlight driving, and does not support touch functionality. The operating temperature for this product ranges from 0 to 50°C, with a storage temperature of -20 to 60°C. Its vibration resistance is rated at 1.5G (14.7 m/s²). Panelook summarizes its typical features as follows: white LED backlight, includes LED driver, flip mounting terminals, and a matte surface.

The NV140WUM-N4H has a display resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 16:10 (width:height), and employs an RGB vertical stripe pixel arrangement. Its active display area measures 301.594 mm (width) × 188.496 mm (height), with overall dimensions of 306.59 mm (width) × 205 mm (height) × 3 mm (thickness). The surface features an anti-glare, matte finish with a Hard Coating (3H) treatment. The product has a net weight of 300g (maximum) and a slim profile design (with a flat PCBA and thickness ≤ 3.2mm). The backlight system utilizes an 11S6P WLED edge-lit light source (bottom side), offering a lifetime of 15K hours and including an LED driver. The NV140WUM-N4H features an eDP (2 Lanes) signal interface with a total of 30 pins, using a connector terminal, and operates with a typical driving voltage of 3.3V. Its typical vertical refresh rate (Fv) is 60Hz.
