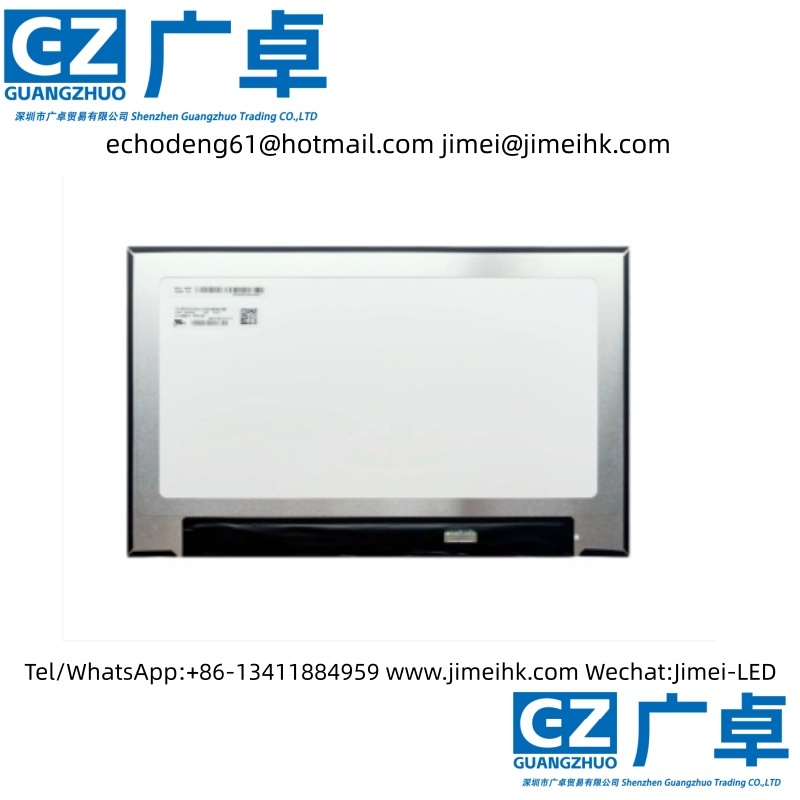

The LP140WU1-SPH2 (alternate name: LP140WU1 (SP)(H2)) is a 14.0-inch a-Si TFT-LCD module developed by LG Display. It incorporates WLED backlighting, includes an LED driver for backlight operation, and does not feature touch functionality. The operating temperature range for this product is 0 to 50°C, and its storage temperature range is -20 to 60°C.
The LP140WU1-SPH2 features a display resolution of 1920 (RGB) × 1200 (WUXGA), with an aspect ratio of 16:10 (width:height). Its pixel arrangement is RGB vertical stripe. The active area dimensions are 301.594 (width) × 188.496 (height) mm, while the overall dimensions are 306.59 (width) × 198.4 (height) × 3.95 (thickness) mm. The surface treatment is Hard coating (3H), and the product’s net weight is 170g (Max.). The appearance style is a slim screen (with PCBA bent, thickness ≤ 3.0mm). For backlighting, this product uses a WLED edge-lit light source with a lifespan of 15K hours, including an LED driver. The LP140WU1-SPH2 utilizes an eDP (2 Lanes) signal interface with a total of 30 pins, connected via terminals. The driving voltage is 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
