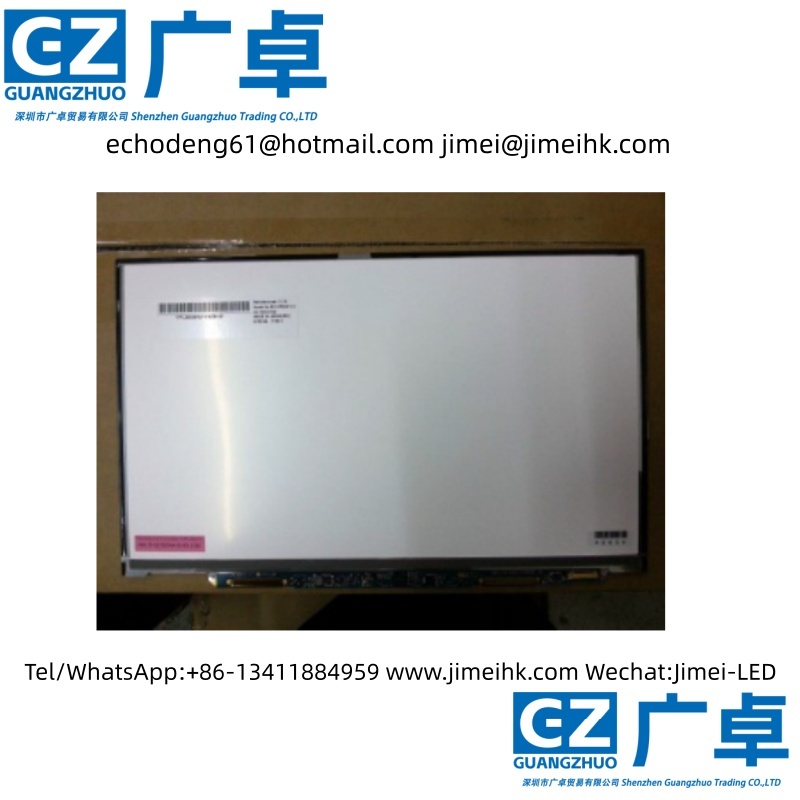

The B131RW02 V0 (also known as: B131RW02 V.0) (product code: SNY06FA) launched by AUO is a 13.1-inch LCD module product utilizing a-Si TFT-LCD technology. It is equipped with WLED backlight, has no backlight driver, and no touch function. Panelook summarizes its typical features as: white LED backlight, inverted terminal, and matte surface. Its operating temperature range is 0 ~ 50 °C, and its storage temperature range is −20 ~ 60 °C. This model is suitable for use in notebook devices.

The B131RW02 V0 features a display resolution of 1600 (RGB) × 900 (HD+), with an aspect ratio of 16:9 (width:height). The pixel arrangement adopts RGB vertical stripes. Its display area measures 289.2 × 162.675 mm (width × height), and the overall dimensions are 299.1 (width) × 184.3 (height) × 3 (thickness) mm. The surface treatment is matte with a Hard coating (4H), and the product’s net weight is 158g (Typ.). The exterior design is a slim panel (with PCBA being flat and thickness ≤3.2mm). In terms of backlight, this product uses a WLED side-lit light source with a lifespan of 10K hours, excluding the backlight driver. The B131RW02 V0 utilizes an eDP (2 Lanes) signal interface with a total of 30 pins, connected via terminals, and operates at a driving voltage of 2.5V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
