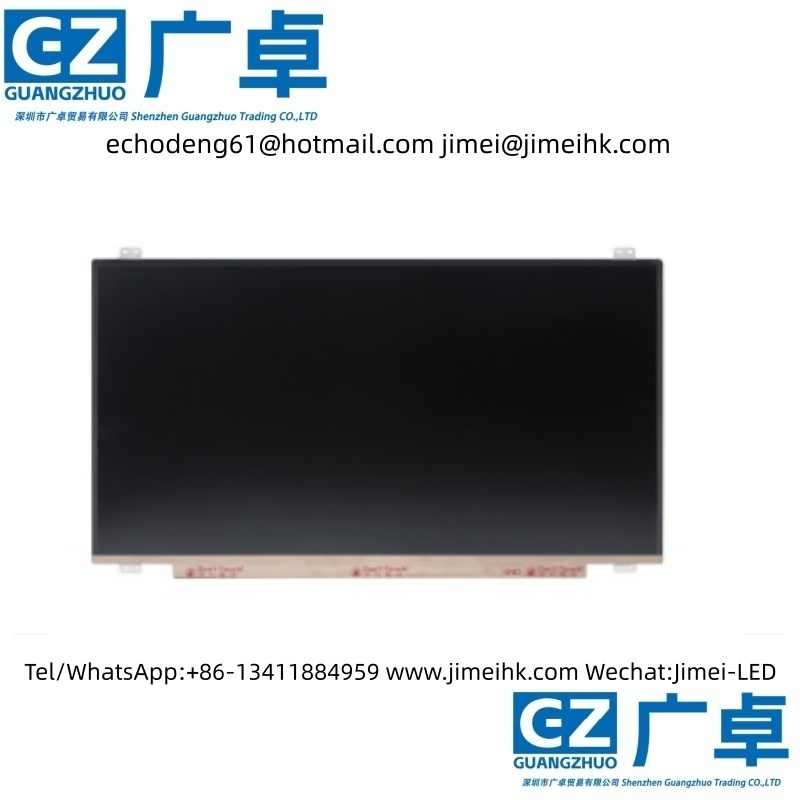

B173HAN03.0 (product code: AUO309D) is a 17.3-inch a-Si TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical features are summarized as: 144Hz, white LED backlight, including LED driver, inverted terminal, surface matte, NVIDIA G-Sync， 144Hz, G-Sync, eDP1.4。 Based on its features, this model is recommended for use in laptops, games, and other products

B173HAN03.0 has a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripes. Its active display area measures 381.888 mm (width) × 214.812 mm (height), while the overall dimensions are 398.1 mm (width) × 250.5 mm (height) × 4 mm (thickness). The surface features a matte finish with hard coating (3H), and the product weighs up to 550 g (maximum). It has a medium-thick profile (flat PCBA, thickness ranging from 3.4 to 4.0 mm).

In terms of backlighting, this model uses WLED (White LED) edge-lit illumination with a lifespan of 15,000 hours, including an integrated LED driver. B173HAN03.0 employs an eDP (Embedded DisplayPort) signal interface with 4 lanes, totaling 40 pins connected via a terminal. The panel driving voltage is 3.3V (typical). Its typical vertical refresh rate (Fv) is 144 Hz.
