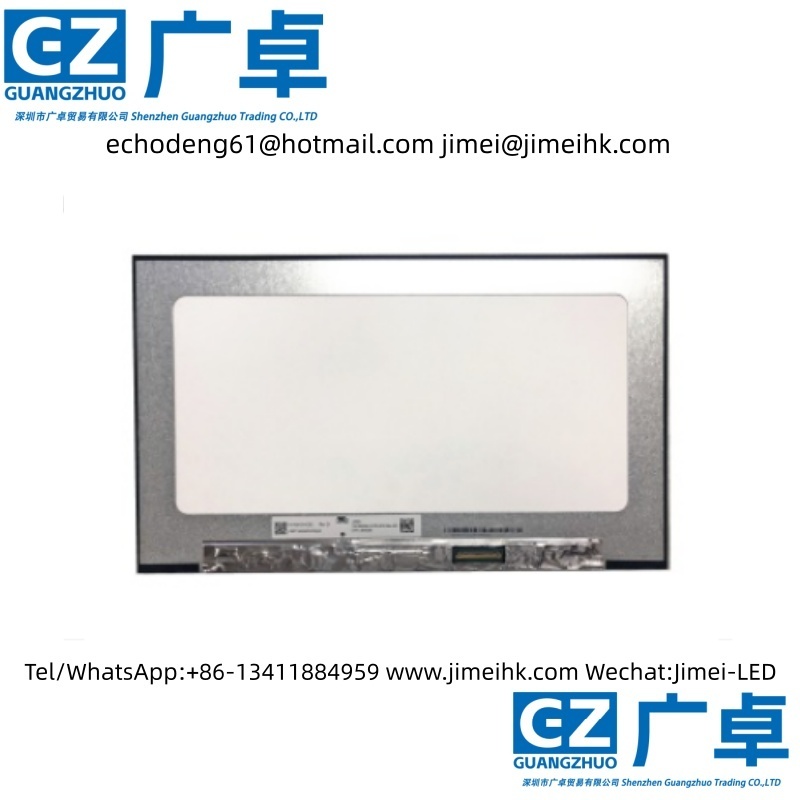

The N140HCN-E5C (product code: CMN14E9) launched by Innolux is a 14.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight and includes LED driver backlight driver, On-Cell Touch。 Summarize its typical features as follows: touch screen, white LED backlight, LED driver included, inverted terminals, matte surface, eDP1.2, DPN: 6WW5K. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in laptops.

The display resolution of N140HCN-E5C is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged in vertical RGB stripes. Its display area size is 309.31 × 173.99 (width × height) mm, and its appearance size is 315.81 (width) × 186.09 (height) × 5.25 (thickness) mm. The surface treatment is matte, Hard coating (3H)， The net weight of the product is 296/310g (Typ./Max.). The appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a side entry light source with 11S3P WLED emission, with a service life of 15K hours, including LED driver. N140HCN-E5C adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz
