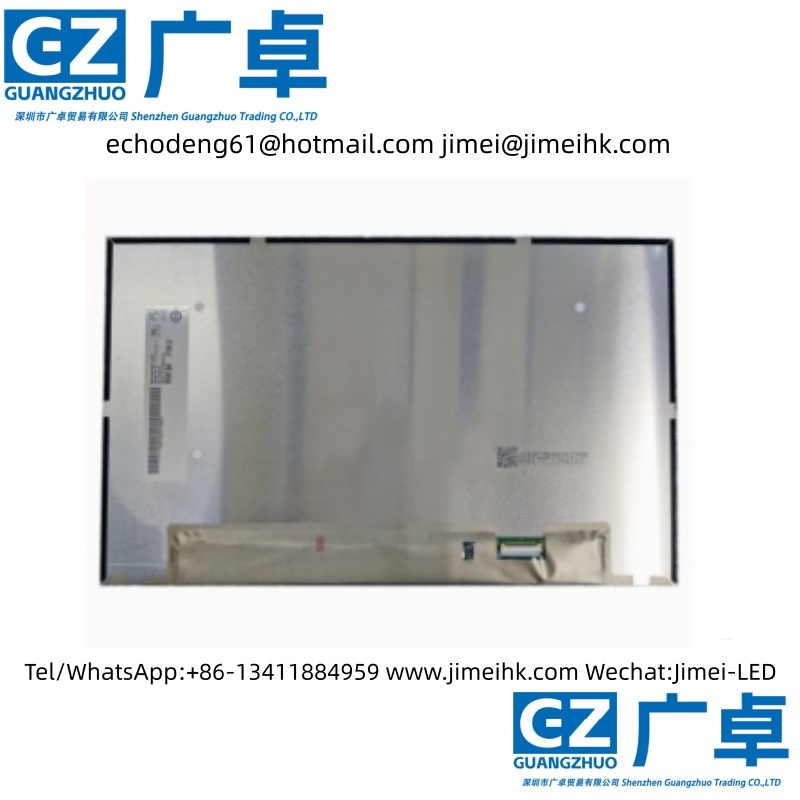

B133HAK02.1 (product code: AUO212D) is a 13.3-inch a-Si TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight, including LED driver backlight driver, On-Cell Touch。 The working temperature of this product is -20~60 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical features are summarized as: touch screen, white LED backlight, LED driver included, inverted terminals, surface matte, eDP1.3, sDRRS, DCR, DMRRS, PSR1, MBO. Based on its features, this model is recommended for use in laptops and other products.

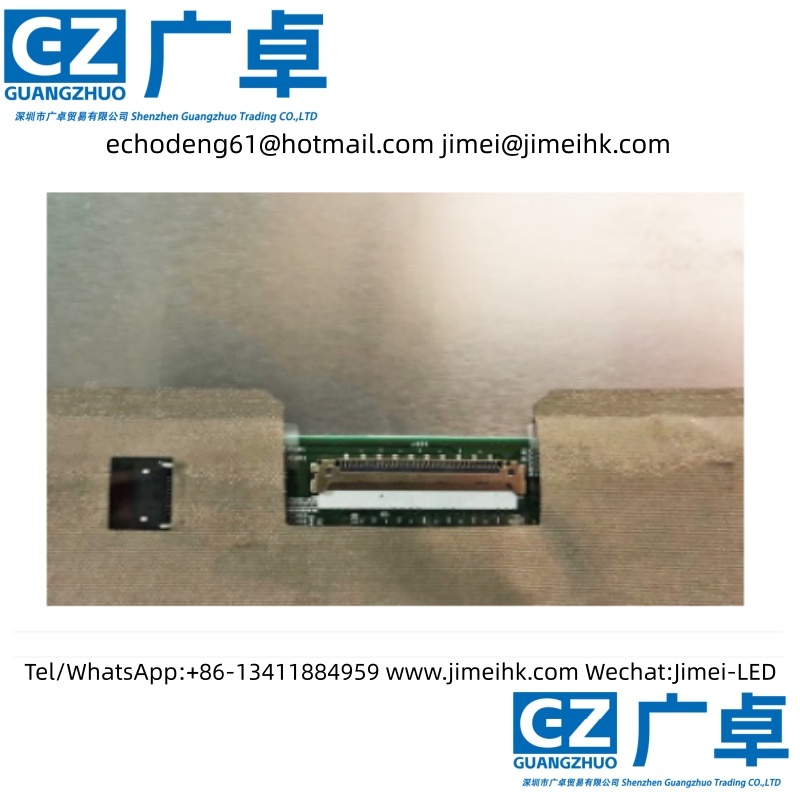

B133HAK02.1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 293.76 (width) × 165.24 (height) mm, and its appearance size is 300.26 (width) × 177.55 (height) × 4.5 (thickness) mm. The surface treatment is matte, Hard coating (3H)， The net weight of the product is 220g (Max.), and the appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B133HAK02.1 adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

B133HAK02.1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 293.76 (width) × 165.24 (height) mm, and its appearance size is 300.26 (width) × 177.55 (height) × 4.5 (thickness) mm. The surface treatment is matte, Hard coating (3H)， The net weight of the product is 220g (Max.), and the appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B133HAK02.1 adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
