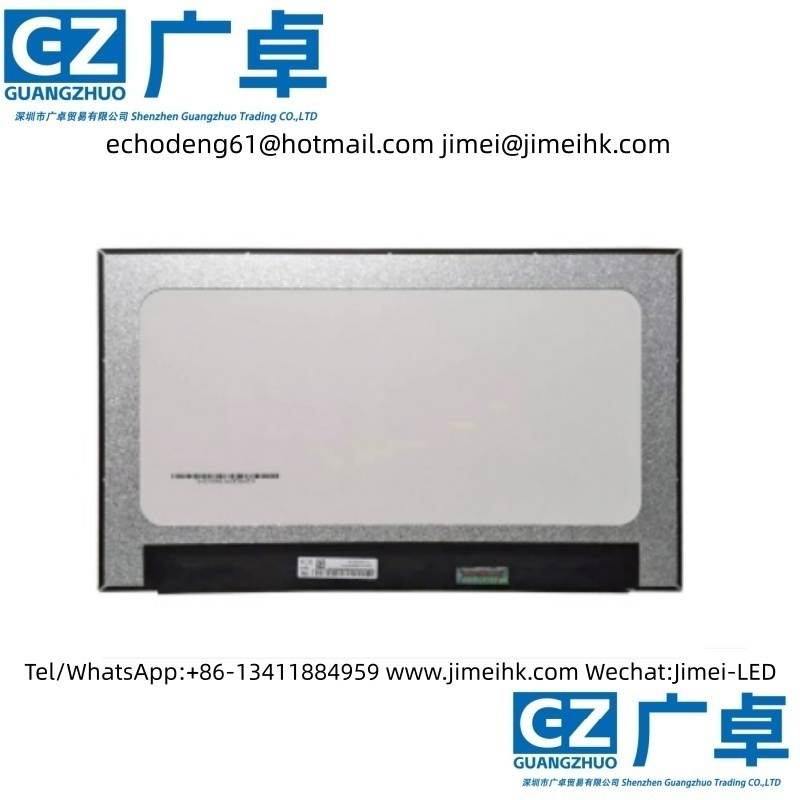

NV156FHM-T0C (product code: BOE0923) is a 15.6-inch LCD module product launched by BOE Technology Group Co., Ltd. (BOE) using a-Si TFT-LCD technology. It is equipped with WLED backlight, including LED driver backlight driver, On-Cell Touch。

The NV156FHM-T0C display has a resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripes. Its active display area measures 344.16 × 193.59 mm (width × height), while the overall dimensions are 350.66 × 205.69 mm (width × height) × 5.4 mm (thickness). The surface features an anti-glare treatment with hard coating (3H). The net weight is 380 g (maximum). The appearance style is a slim panel (with PCBA bending, thickness ≤ 3.0 mm).

In terms of backlighting, this product uses a side-lit light source (bottom) with 10S4P WLEDs, offering a lifespan of 15,000 hours and including an LED driver. The NV156FHM-T0C adopts an eDP (2 Lanes) signal interface with a total of 40 pins, connected via a terminal. The driving voltage for the panel is 3.3V (typical). Its typical vertical refresh rate (Fv) is 60 Hz.
