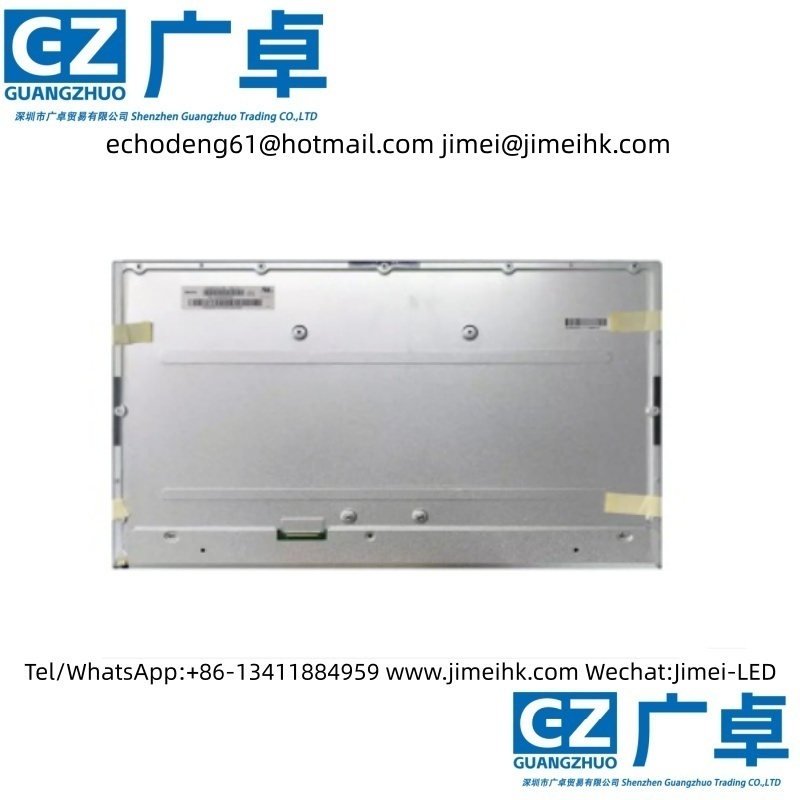

The M238HCA-L3E launched by Innolux is a 23.8-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, and no touch. Summarizing its typical features are: borderless edges on 3 sides, white LED backlight, inverted terminals, matte surface, 3- side Borderless, TCO 8.0ompliance & ES 8.0, LBL。 Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use with computer monitors

The M238HCA-L3E display has a resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripes. Its active display area measures 527.04 × 296.46 mm (width × height), while the overall dimensions are 535 mm (width) × 313 mm (height) × 12.7 mm (thickness). The surface treatment is matte (Haze 25%) with hard coating (3H). The net weight of the product ranges from 2.04 to 2.40 kg (Min./Typ./Max.).

In terms of backlighting, this model uses WLED (White LED) side-lit illumination, with a light source lifespan of 30,000 hours. The backlight driver is not included.

The M238HCA-L3E features an LVDS signal interface (2 channels, 8-bit), with a total of 30 pins connected via a terminal. The panel driving voltage is 5.0V (typical). Its typical vertical refresh rate (Fv) is 75Hz.
