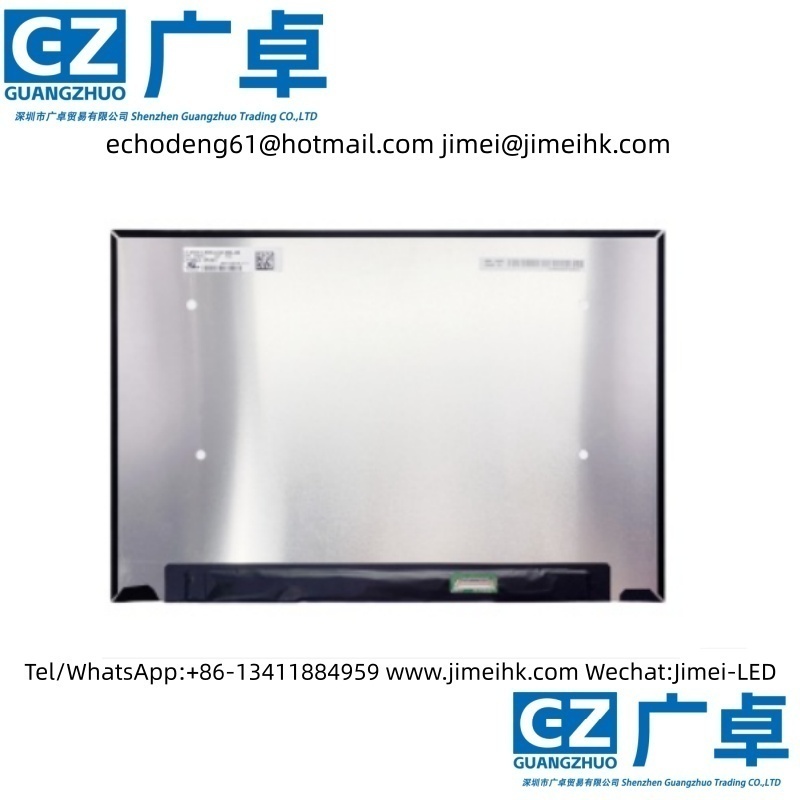

LP140WU2-SPM1 (alias: LP140WU2 (SP) (M1)) (product code: LGD06F9) is a 14.0-inch a-Si TFT-LCD LCD module product launched by LG Display. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, and the storage temperature is -20~60 ° C. Its typical features are summarized as: white LED backlight, including LED driver, inverted terminals, surface fog, eDP1.2, sDRRS, DMRRS, SSC, LED DC Dimming. Based on its features, this model is recommended for use in laptops and other products.

The LP140WU2-SPM1 has a display resolution of 1920 (RGB) × 1200 (WUXGA), with an aspect ratio of 16:10 (width:height). The pixels are arranged in vertical RGB stripes. Its active display area measures 301.594 mm (width) × 188.496 mm (height), while the overall dimensions are 306.59 mm (width) × 199.5 mm (height) × 5 mm (thickness). The surface finish is matte, and the net weight of the product is up to 300 g. It features a slim screen design (with PCBA bending, thickness ≤ 3.0 mm).

In terms of backlighting, this product uses a WLED (White LED) side-lit light source with a lifespan of 12,000 hours, including an LED driver. The LP140WU2-SPM1 adopts an eDP (Embedded DisplayPort) signal interface with 2 lanes, totaling 30 pins, and uses a terminal connection. The driving voltage for the panel is 3.3V (typical). Its typical vertical refresh rate (Fv) is 60 Hz.
