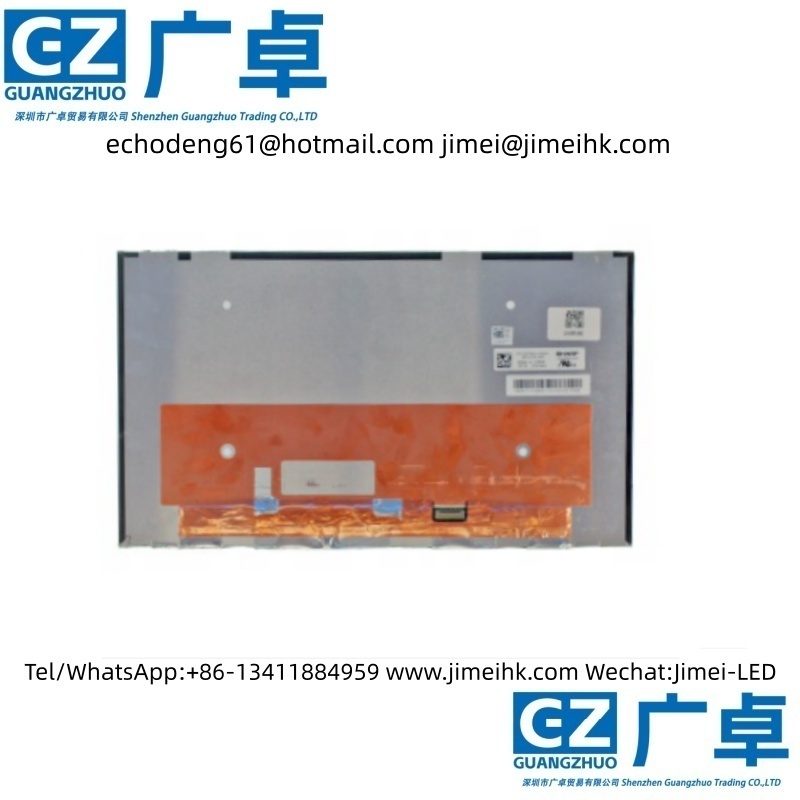

LQ140M1JX42 (alias: LQ0DASD521) is a 14.0-inch LCD module product developed by Sharp Corporation (Sharp), Japan, utilizing Oxide TFT-LCD technology. It features WLED backlighting and has no touch functionality. The display resolution of the LQ140M1JX42 is 1920(RGB)×1080 (FHD), with an aspect ratio of 16:9 (width:height), and the pixels are arranged in vertical RGB stripes. Its active display area measures 309.312×173.988 (width × height) mm, with a surface treatment of glossy (Haze 0%), and its appearance style is thin screen (PCBA bending, thickness ≤ 3.0 mm). In terms of backlighting, this product uses a side-lit light source with WLED emission, offering a lifespan of 15,000 hours. The LQ140M1JX42 employs an eDP signal interface and uses terminal connections.

Its operating temperature ranges from 0 to 50°C, and the storage temperature ranges from -25 to 60°C. Based on its features such as white LED backlight, flip-chip terminals, mirror-like surface, and part numbers like DP/N: 094RK8, 0T6YM4, this model is recommended for use in laptops.
