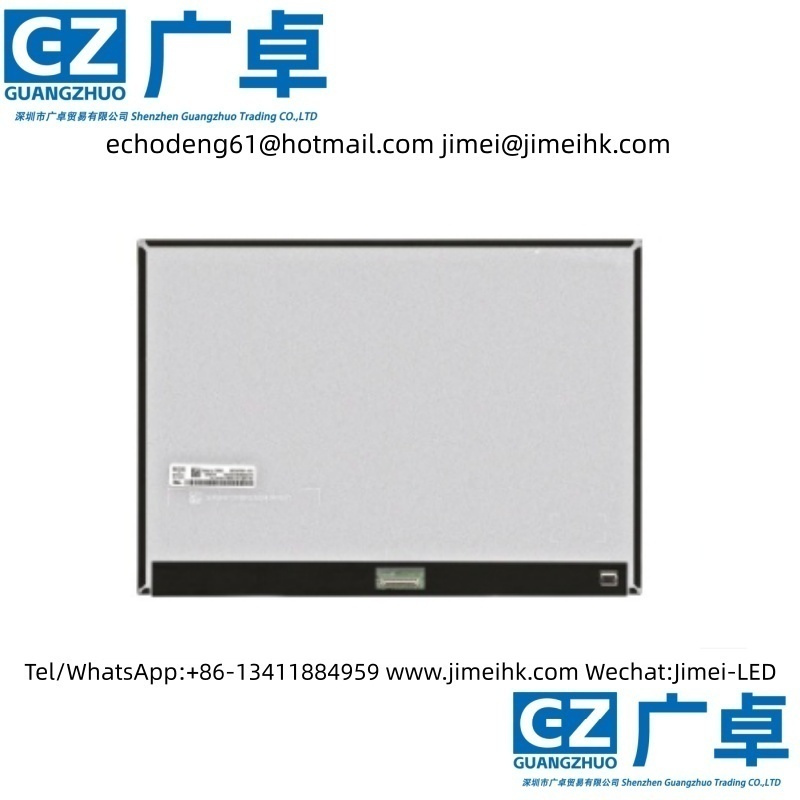

The NV130F9M-N51 (Product Code: BOE0AEC) is a 13.0-inch a-Si TFT-LCD module product launched by BOE (Beijing Oriental Electronics Co., Ltd.). It features a WLED backlight with LED driver backlight control and no touch capability. The operating temperature range is 0 ~ 50°C, and the storage temperature range is -20 ~ 60°C. Its key specifications include: sRGB, white LED backlight, integrated LED driver, flip-chip terminals, glossy surface, DELL DPN:3P97M, eDP1.4b, LBL, PSR2. Based on these features, this model is recommended for applications in products such as laptops
NV130F9M-N51 FHD IPS LED 液晶显示器屏幕
NV130F9M-N51
面板品牌:京东方 (BOE)
面板型号：NV130F9M-N51
面板尺寸：13.0英寸
面板类型：a-Si TFT-LCD, 液晶模组
分辨率：1920(RGB)×1280, 177PPI
像素布局：RGB垂直条状
显示区域：274.464(W)×182.976(H) mm
外观尺寸：278(W)×191.65(H)×3.76(D) mm
表面处理：镜面 (Haze 0%)，Hard coating (3H)
亮度(cd/m²)：500 (Typ.)
对 比 度:1800 : 1 (Typ.) [透射]
最佳角度:全视角
光学模式:ADS，常黑显示，透射式
可视角度:88/88/88/88 (Min.)(CR≥10) 左 / 右 / 上 / 下
响应速度:30 (Typ.)(Tr+Td) ms
颜色数量:16.7M , 100% sRGB
背光类型:10 strings WLED , 15K小时 , 含LED驱动器
外观样式:薄屏 (PCBA弯折, 厚度≤3.0mm)
适用于:笔记本
刷新频率:60Hz
触摸功能:无触摸
信号系统:eDP (2 Lanes) , eDP1.4b , HBR1 (2.7G/lane) , 端子 , 40 pins
供应电压:3.3V (Typ.)
最大额定:存储温度: -20 ~ 60 °C 工作温度: 0 ~ 50 °C
