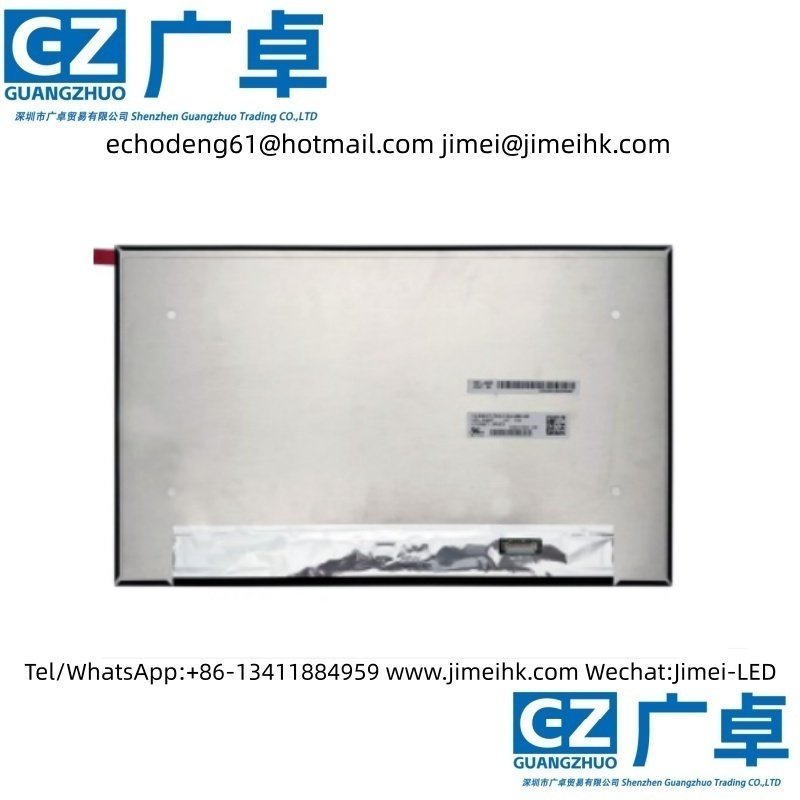

The LP133WF7-SPF2 (alias: LP133WF7 (SP) (F2)) (product code: LGD05DC) launched by LG Display is a 13.3-inch LCD module based on a-Si TFT-LCD technology. It has WLED backlight with integrated LED driver and no touch function. Its typical features include: white LED backlight with LED driver, bottom-up connector, matte surface, eDP1.3 interface, PSR, sDRRS, and SSC. Its working temperature range is 0 to 50 ° C, storage temperature is -20 to 60 ° C, and it can withstand vibrations up to 1.0G (9.8 m/s ²). This model is suitable for laptops.

The LP133WF7-SPF2 has a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripe configuration. Its active display area measures 293.76 × 165.24 mm (width × height), while the overall dimensions are 300.26 (width) × 177.55 (height) × 4.4 (thickness) mm. The surface treatment is anti-glare with hard coating (3H), and the net weight of the product is 203 g (maximum). It features a slim screen design (PCBA bending, thickness ≤ 3.0 mm).

In terms of backlighting, this model uses WLED (White LED) edge-lit illumination, with a lifespan of 15,000 hours, including LED driver. The LP133WF7-SPF2 adopts an eDP (Embedded DisplayPort) signal interface with 2 lanes, totaling 30 pins and using a terminal connection. The panel driving voltage is 3.3V (typical). Its typical vertical refresh rate (Fv) is 60 Hz.
