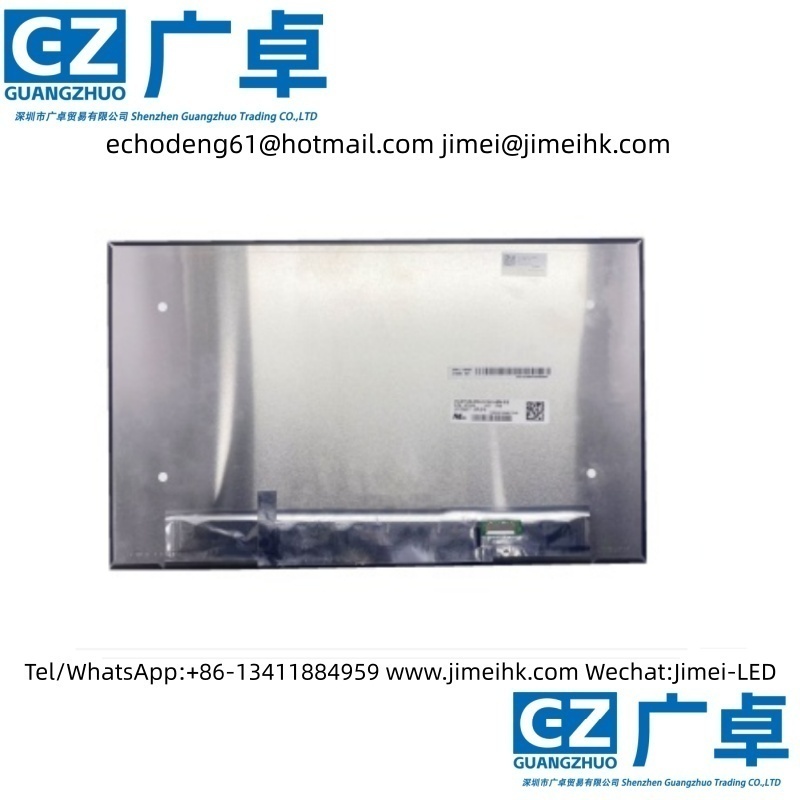

LP133WF7-SPF4 (Alias: LP133WF7 (SP)(F4)) (Product Code: LGD06C6) is a 13.3-inch LCD module product launched by LG Display Co., Ltd. (LG Display, LG Display), utilizing a-Si TFT-LCD technology. It is equipped with WLED backlighting, including an LED driver for backlight control, and has no touch functionality.

The LP133WF7-SPF4 display has a resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripes. Its active display area measures 293.76 × 165.24 mm (width × height), while the overall dimensions are 300.26 × 177.55 mm (width × height) × 4.4 mm (thickness). The surface treatment is anti-glare with hard coating (3H). The net weight of the product is up to 203 g. It features a slim screen design (with PCBA bending, thickness ≤ 3.0 mm).

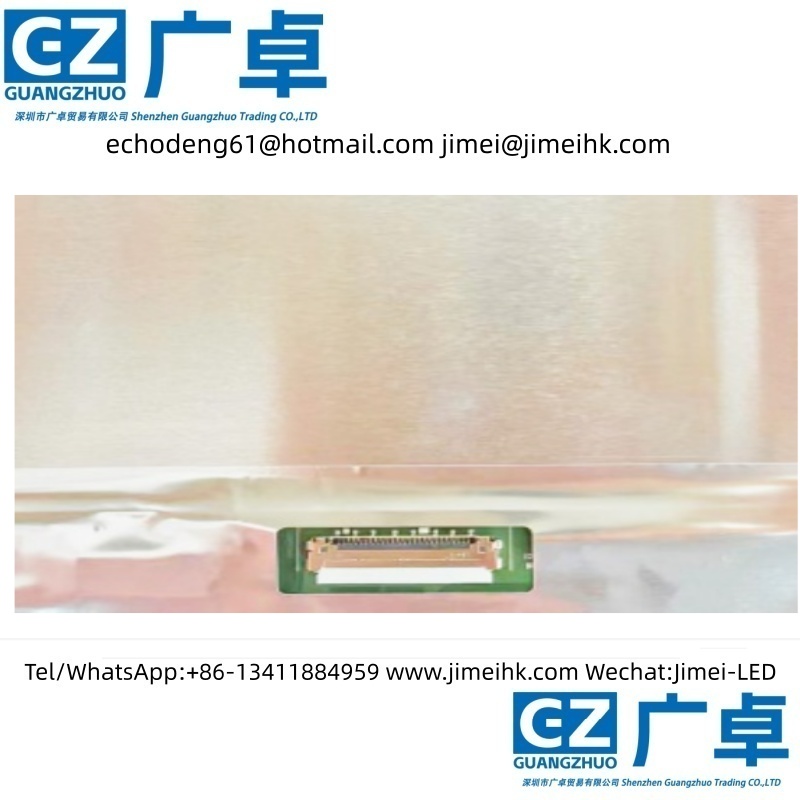

For backlighting, this model uses a side-lit WLED (White LED) light source with a lifespan of 15,000 hours, including an LED driver. The LP133WF7-SPF4 adopts an eDP (Embedded DisplayPort) signal interface with 2 lanes, totaling 30 pins and using a terminal connection. The driving voltage for the panel is 3.3V (typical). Its typical vertical refresh rate Fv is 60 Hz.
