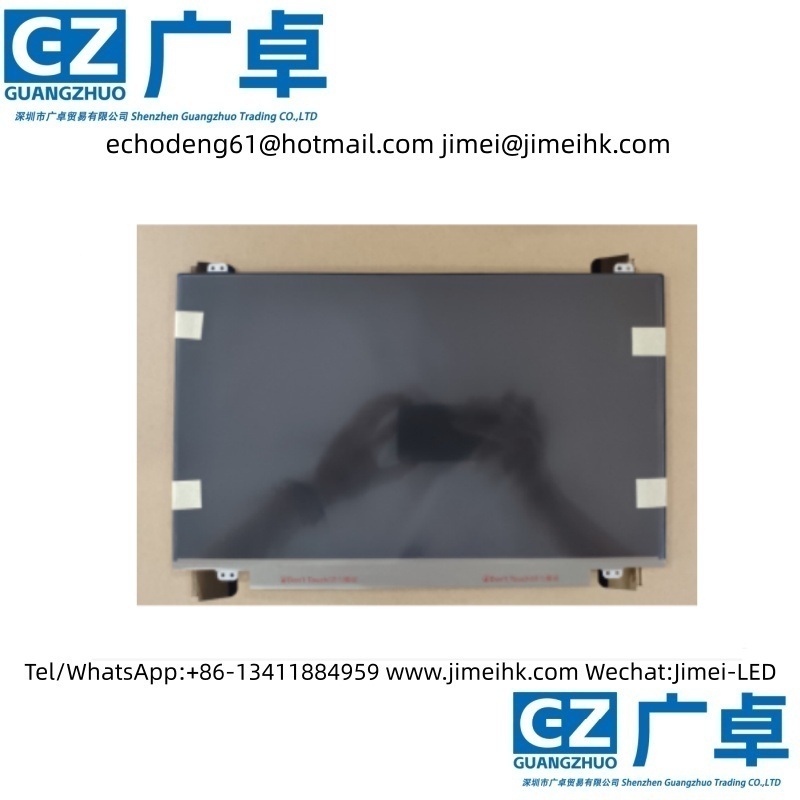

The B140HAK01.3 (Product Code: AUO133D), launched by AU Optronics (AUO), is a 14.0-inch LCD module based on a-Si TFT-LCD technology. It features WLED backlighting with an integrated LED driver, and On-Cell Touch functionality. According to the screen database, its typical characteristics include: touchscreen support, white LED backlight with LED driver, bottom-up terminal configuration, eDP 1.2 interface, and part number 08CVCF. Its operating temperature ranges from 0 to 50°C, storage temperature from -20 to 60°C, and it can withstand vibration up to 1.5G (14.7 m/s²). This model is suitable for use in notebook computers.

The B140HAK01.3 features a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height), and uses RGB vertical stripe pixel arrangement. Its active display area measures 309.14 × 173.89 mm (width × height), while the overall dimensions are 320.4 mm (width) × 205.1 mm (height) × 3.2 mm (thickness). The surface treatment is Hard coating (3H), and the net weight of the product is 270 g (maximum). It has a slim display design (with PCBA flat and thickness ≤ 3.2 mm).

In terms of backlighting, this product adopts WLED (White LED) edge-lit light source with a lifespan of 15,000 hours, including an LED driver. The B140HAK01.3 utilizes an eDP (Embedded DisplayPort) signal interface with 2 lanes, totaling 40 pins, and connects via a terminal. The panel driving voltage is 3.3V (typical). Its typical vertical refresh rate Fv is 60 Hz.
