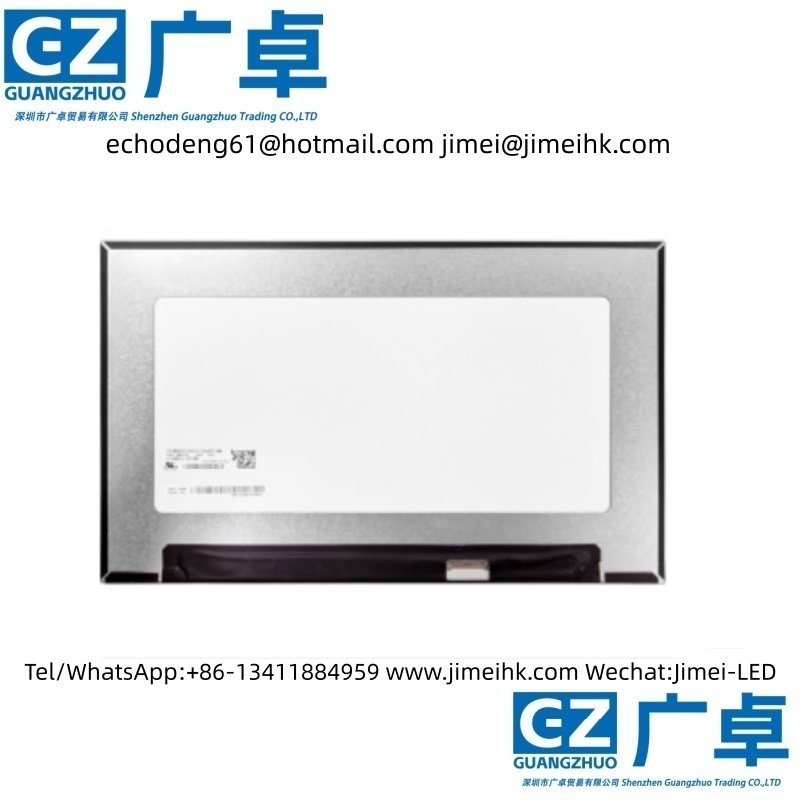

The LP140WFH-SPM1 (alias: LP140WFH (SP)(M1)), launched by LG Display, is a 14.0-inch LCD module product that utilizes a-Si TFT-LCD technology. It features WLED backlighting with an LED driver for backlight control and does not include a touch function.

White light LED backlight, including LED driver, terminal flip-chip, matte surface, eDP1.2, LED DC dimming, sDRRS. Its operating temperature is 0 to 50°C, storage temperature is -20 to 60°C, and vibration resistance is 1.0G (9.8 m/s²). This model is suitable for use in laptops.

The LP140WFH-SPM1 has a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height), and features vertically arranged RGB stripe pixels. Its active display area measures 309.31 × 173.99 mm (width × height), while the overall dimensions are 315.81 mm (width) × 187.67 mm (height) × 5.25 mm (thickness). The surface treatment is anti-glare with hard coating (3H), and the product has a net weight of 310 g (maximum). It adopts a slim panel design (with PCBA bending, thickness ≤ 3.0 mm).

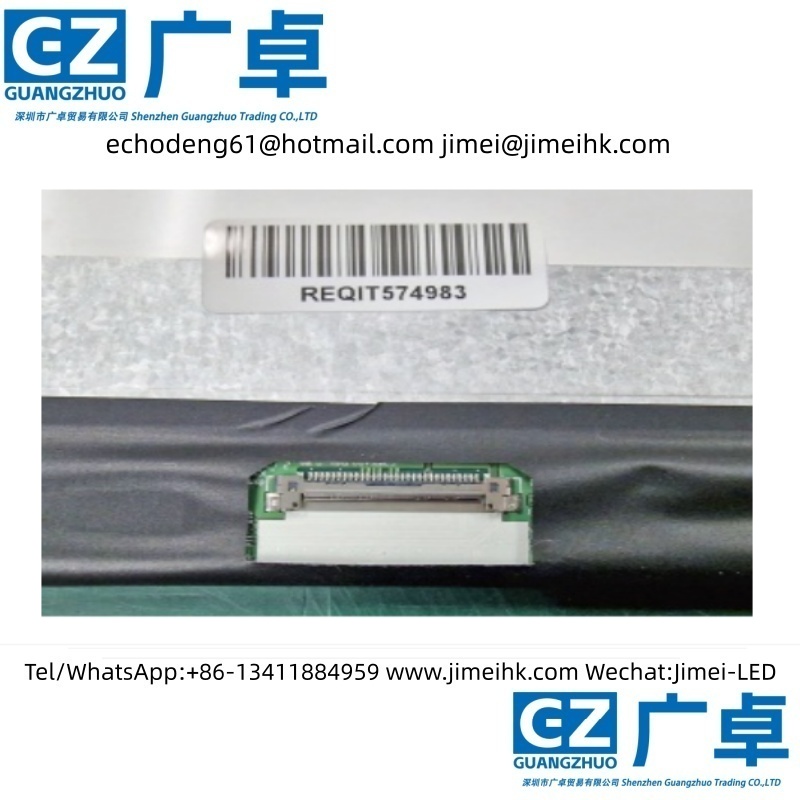

In terms of backlighting, this model uses WLED (white LED) edge-lit illumination with a lifespan of 12,000 hours, including an LED driver. The LP140WFH-SPM1 employs an eDP (2 Lanes) signal interface with a total of 30 pins connected via a terminal block, and the driving voltage is 3.3V (typical). Its typical vertical refresh rate (Fv) is 60 Hz.
