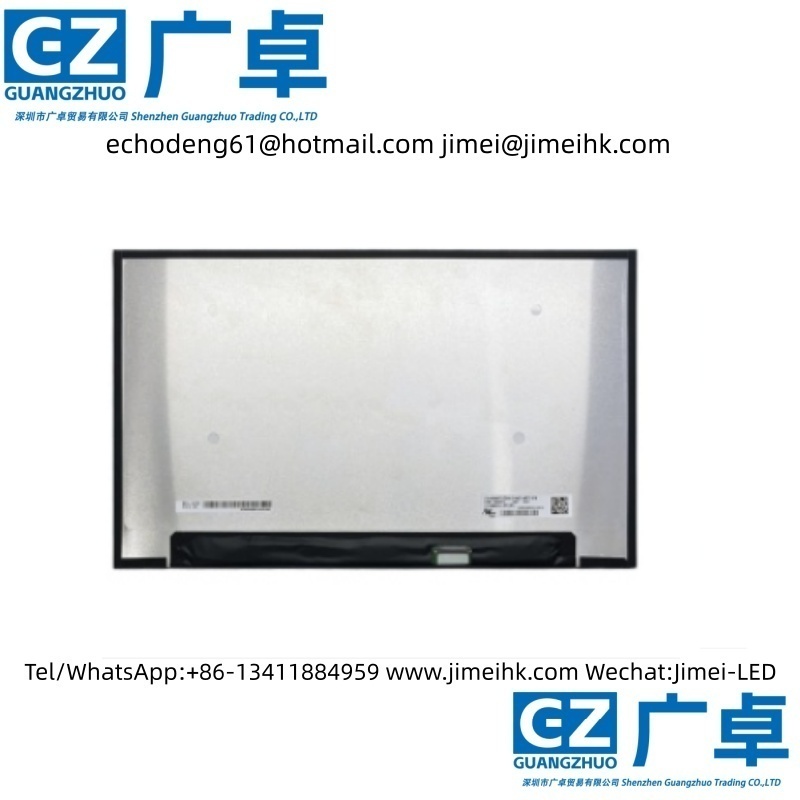

LP140WFH-SPB1 (alias: LP140WFH (SP)(B1)) is a 14.0-inch LCD module product launched by LG Display Co., Ltd. (LG Display), utilizing a-Si TFT-LCD technology. It is equipped with WLED backlighting, including an LED driver for backlight control, and has no touch functionality.

The LP140WFH-SPB1 has a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripe configuration.

Its active display area measures 309.31 × 173.99 mm (width × height), while the overall dimensions are 315.81 × 186.07 mm (width × height) × 5.25 mm (thickness). The surface finish is matte, and the net weight of the product is up to 300 g (max.). The appearance style is a slim panel (with PCBA bending, thickness ≤ 3.0 mm).

For backlighting, this product uses WLED side-lit illumination, with a light source lifespan of 12K hours, including LED driver.

The LP140WFH-SPB1 features an eDP (2 Lanes) signal interface, totaling 30 pins, connected via terminal connectors. The driving voltage for the panel is 3.3 V (typ.). Its typical vertical refresh rate Fv is 60 Hz.
