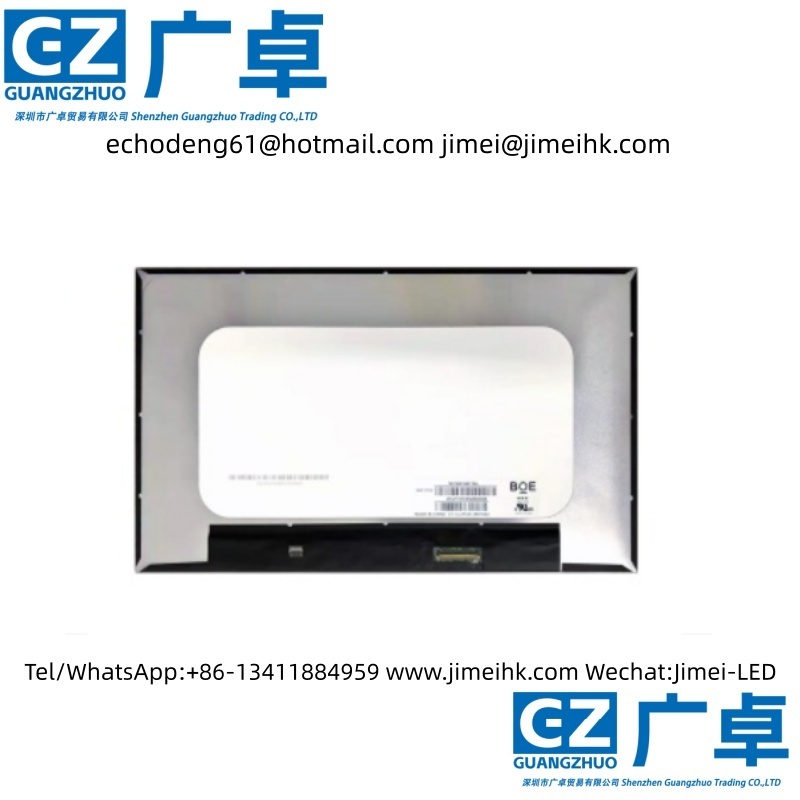

NV140FHM-T0A (Product Code: BOE08BF) is a 14.0-inch LCD module introduced by BOE Technology Group Co., Ltd. (BOE), utilizing a-Si TFT-LCD technology. It is equipped with WLED backlight, includes an LED driver for backlight driving, and features On-Cell Touch technology.

The NV140FHM-T0A features a display resolution of 1920 (RGB) × 1080 (FHD) with an aspect ratio of 16:9 (width:height), and the pixels are arranged in RGB vertical stripes. Its active area measures 309.31 × 173.99 mm (width × height), while the overall dimensions are 315.81 × 186.07 mm (width × height) with a thickness of 5 mm. The surface treatment is matte with a Hard coating (3H), and the product’s net weight is 305g (Max.). The design is a slim panel (with PCBA bending, thickness ≤ 3.0mm). For backlighting, this product utilizes a 9S4P WLED edge-lit light source (bottom), with a lifespan of 15K hours, and includes an LED driver. The NV140FHM-T0A uses an eDP (2 Lanes) signal interface with a total of 40 pins, connected via terminals, and operates at a drive voltage of 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
