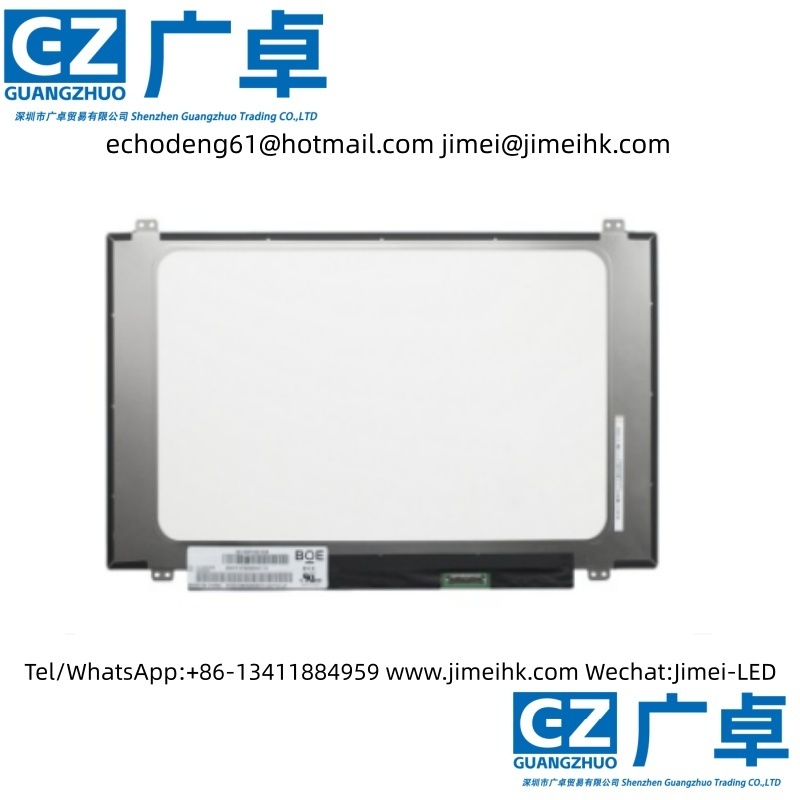

BOE’s NV140FHM-N49 (product code: BOE06F3) is a 14.0-inch LCD module featuring a-Si TFT-LCD technology. It incorporates WLED backlight with an LED driver for backlight driving and does not support touch functionality.

White LED backlight, including LED driver, reverse-mounted terminals, eDP 1.2, narrow bezel. Its operating temperature is 0~50°C, and storage temperature is -20~60°C. This model is suitable for laptops.

The NV140FHM-N49 display has a resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width:height), and employs an RGB vertical stripe pixel arrangement. Its active area dimensions are 309.31 × 173.99 mm (width × height), while the outline dimensions are 315.9 (width) × 197.57 (height) × 3 (thickness) mm. The product’s net weight is 280g (Max.), featuring a slim form factor (with flat PCBA and thickness ≤ 3.2mm). The backlight unit of this product utilizes a 9S4P WLED edge-lit light source (bottom), with a lifetime of 15K hours, and includes an LED driver. The NV140FHM-N49 uses an eDP (2 Lanes) signal interface, with a total of 30 pins connected via terminals, and a driving voltage of 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
