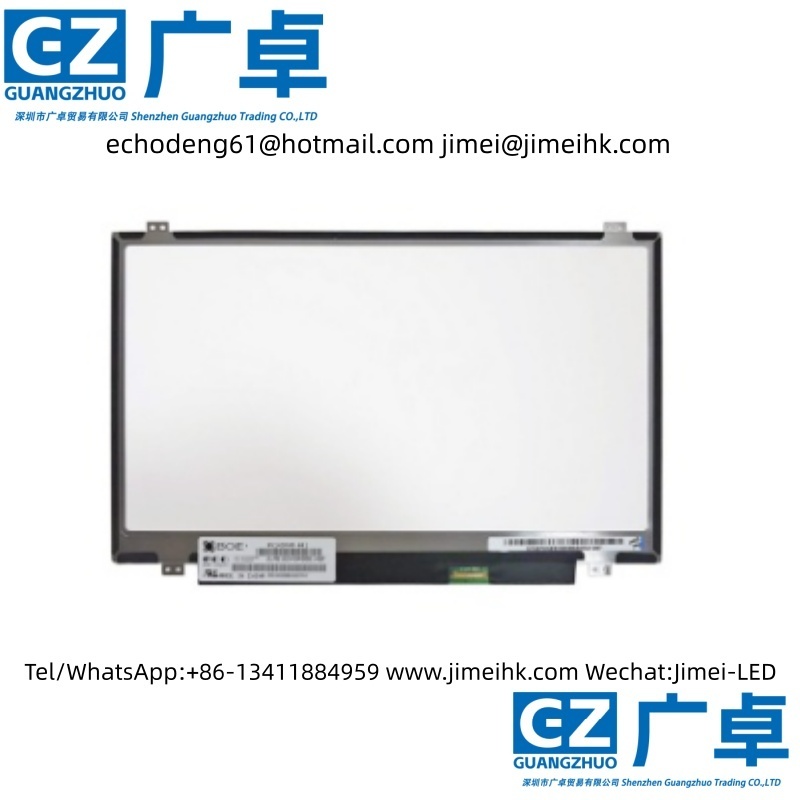

BOE’s NV140FHM-N41 (Product Code: BOE0637) is a 14.0-inch LCD module that utilizes a-Si TFT-LCD technology. It is equipped with a WLED backlight, including an LED driver for backlight driving, and does not feature touch functionality.

White LED backlight, including LED driver, reverse mounting terminals, matte surface, eDP1.2. Its operating temperature is 0 ~ 50°C, storage temperature is -20 ~ 60°C, and vibration resistance is 1.5G (14.7 m/s²). This model is suitable for use in laptops.

The NV140FHM-N41 features a display resolution of 1920 (RGB) × 1080 (FHD) with an aspect ratio of 16:9 (width:height), and the pixels are arranged in RGB vertical stripes. Its active area dimensions are 309.31 × 173.99 mm (width × height), while the overall module dimensions are 320.4 (width) × 205.1 (height) × 3 (thickness) mm. The surface treatment is matte with a Hard coating (3H), and the product’s net weight is 290g (Max.). The exterior design is a slim profile (PCBA flat, thickness ≤ 3.2mm).

For backlighting, this product utilizes a 10S4P WLED edge-lit light source (bottom entry) with a lifetime of 15K hours, including an LED driver. The NV140FHM-N41 adopts an eDP (2 Lanes) signal interface with a total of 30 pins, using a connector terminal, and the driving voltage is 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
