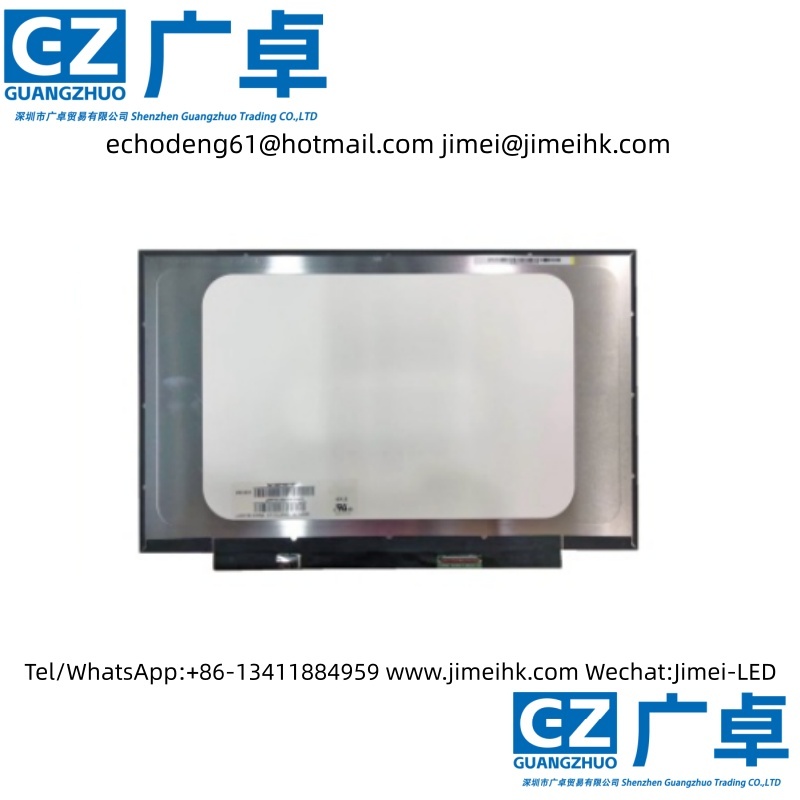

NV140FHM-T07 (Product Code: BOE09D6) is a 14.0-inch LCD module launched by BOE Technology Group Co., Ltd. (BOE), which adopts a-Si TFT-LCD technology. It is equipped with WLED backlight, including LED driver backlight drive and On-Cell Touch.

The NV140FHM-T07 features a display resolution of 1920(RGB) × 1080 (FHD) with an aspect ratio of 16:9 (width:height) and pixel arrangement in RGB vertical stripes. Its active area measures 309.31 × 173.99 mm (width × height), while the overall dimensions are 315.81 × 197.48 × 3.2 mm (width × height × thickness). The surface finish is matte with Hard Coating (3H), and the product’s net weight is 290g (Max.). The exterior adopts a slim profile design (PCBA flat, thickness ≤ 3.2mm).

For backlighting, this product uses an 8S4P WLED edge-lit light source (bottom), with a light source lifetime of 15K hours, and includes an LED driver. The NV140FHM-T07 utilizes an eDP (2 lanes) signal interface with a total of 40 pins, connected via a terminal. The driving voltage is 3.3V (Typ.), and the typical vertical refresh rate (Fv) is 60Hz.
