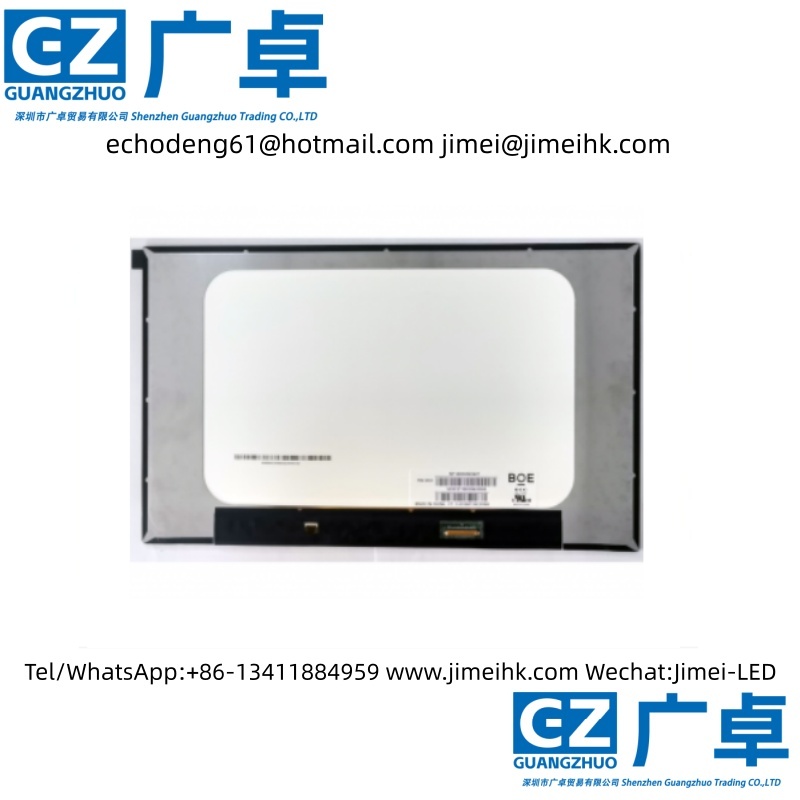

NT140WHM-N4T (Product Code: BOE090D) is a 14.0-inch LCD module product launched by BOE Technology Group Co., Ltd. (BOE), employing a-Si TFT-LCD technology. It is equipped with WLED backlight, includes an LED driver for backlight drive, and does not feature touch functionality.

The NT140WHM-N4T features a display resolution of 1366 (RGB) × 768 (WXGA) with an aspect ratio of 16:9 (width:height), and its pixels are arranged in RGB vertical stripes. The active display area measures 309.399 × 173.952 mm (width × height), while the overall dimensions are 315.81 × 186.07 mm (width × height) with a thickness of 5 mm. The surface finish is matte with a hard coating (3H hardness), and the product has a net weight of 280g (max.). The appearance is designed as a slim panel (with PCBA folded, thickness ≤ 3.0mm).

For backlighting, this product utilizes a 9S4P WLED edge-lit light source (bottom), with a lifespan of 15,000 hours, and includes an LED driver. The NT140WHM-N4T adopts an eDP (1 Lane) signal interface with a total of 30 pins, connected via terminals, and operates at a driving voltage of 3.3V (typical). Its typical vertical refresh rate (Fv) is 60Hz.
