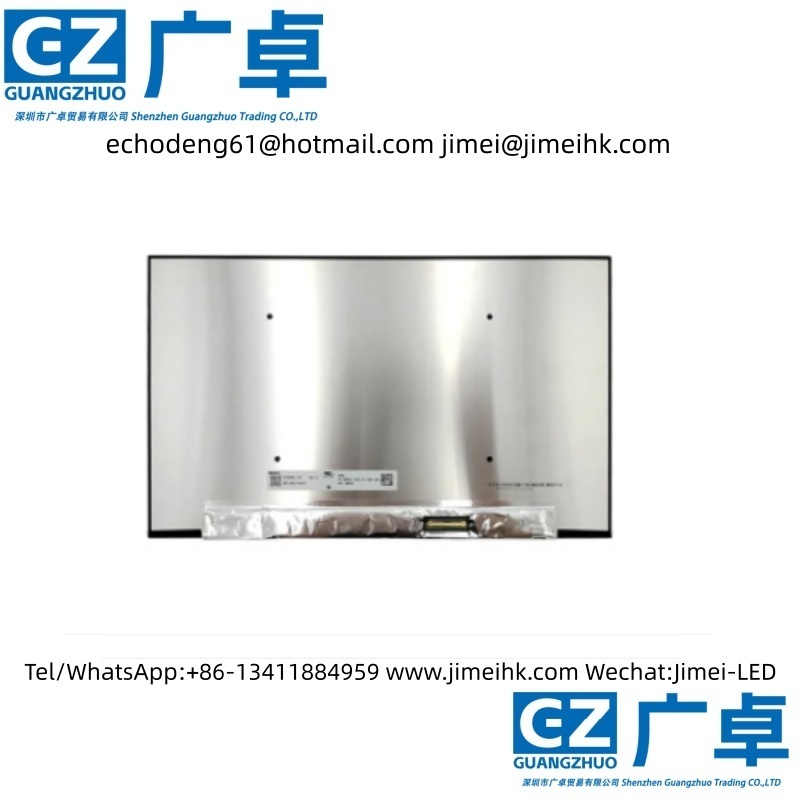

N140HCQ-G51 (Product Code: CMN153F) is a 14.0-inch LCD module developed by Innolux Corporation (Innolux). It utilizes a-Si TFT-LCD technology and is equipped with a WLED backlight, including an LED driver for backlight control, and features On-Cell Touch functionality.

The N140HCQ-G51 display features a resolution of 1920 (RGB) × 1080 (FHD) with an aspect ratio of 16:9 (width:height), and its pixels are arranged in RGB vertical stripes. The active area measures 309.31 × 173.99 mm (width × height), while the overall dimensions are 315.81 × 186.09 mm (width × height) with a thickness of 5.25 mm. The surface treatment is matte with a Hard coating (3H), and the product’s net weight is 282/295 g (Typ./Max.).For backlighting, this product uses a side-edge WLED light source with a lifetime of 15K hours, inclusive of an LED driver. The N140HCQ-G51 utilizes an eDP (2 Lanes) signal interface with a total of 40 pins, connected via terminals, and the driving voltage is 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
