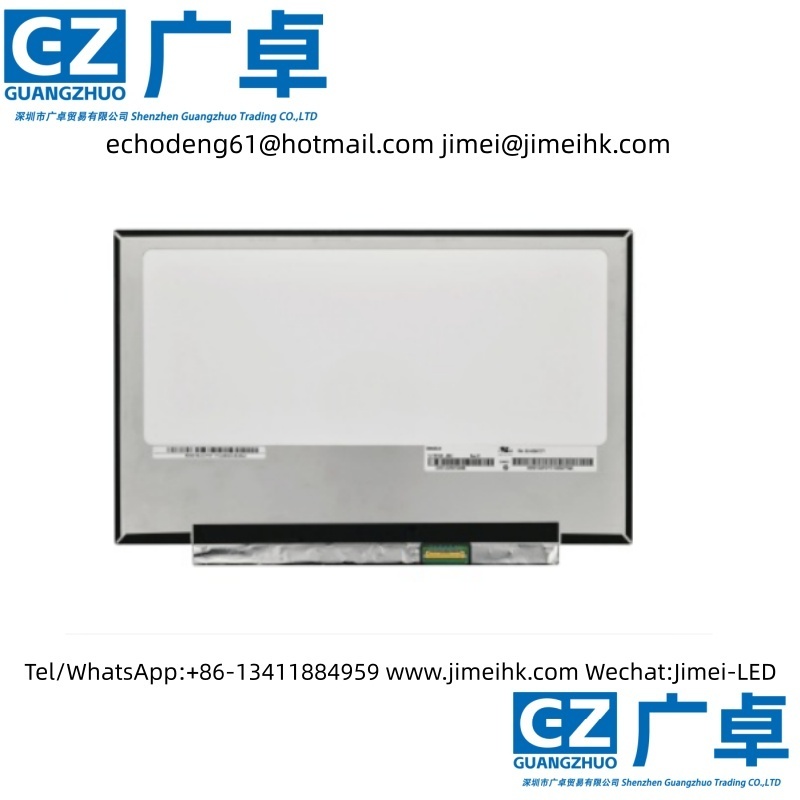

N116HSE-EBC (Product Code: CMN1137) is an 11.6-inch LCD module launched by Innolux Corporation (Innolux). It utilizes a-Si TFT-LCD technology, incorporates WLED backlight with an LED driver for backlight driving, and does not support touch functionality.

The N116HSE-EBC features a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixel arrangement utilizes RGB vertical stripes. The active display area measures 256.32 × 144.18 mm (width × height), while the overall dimensions are 268 × 168 × 3 mm (width × height × thickness). The surface finish includes a glossy treatment (Haze 0%) with a Hard Coating (3H rating). The product’s net weight is 185g (Typ.) / 200g (Max.), and it features a thin-screen design (with a straight PCBA and thickness ≤ 3.2mm).For backlighting, this product employs a WLED edge-lit light source with a lifespan of 15,000 hours, inclusive of an LED driver. The N116HSE-EBC utilizes an eDP (2 Lanes) signal interface with a total of 30 pins, connected via a terminal. The driving voltage for the screen is 3.3V (Typ.), and its standard vertical refresh rate (Fv) is 60Hz.
