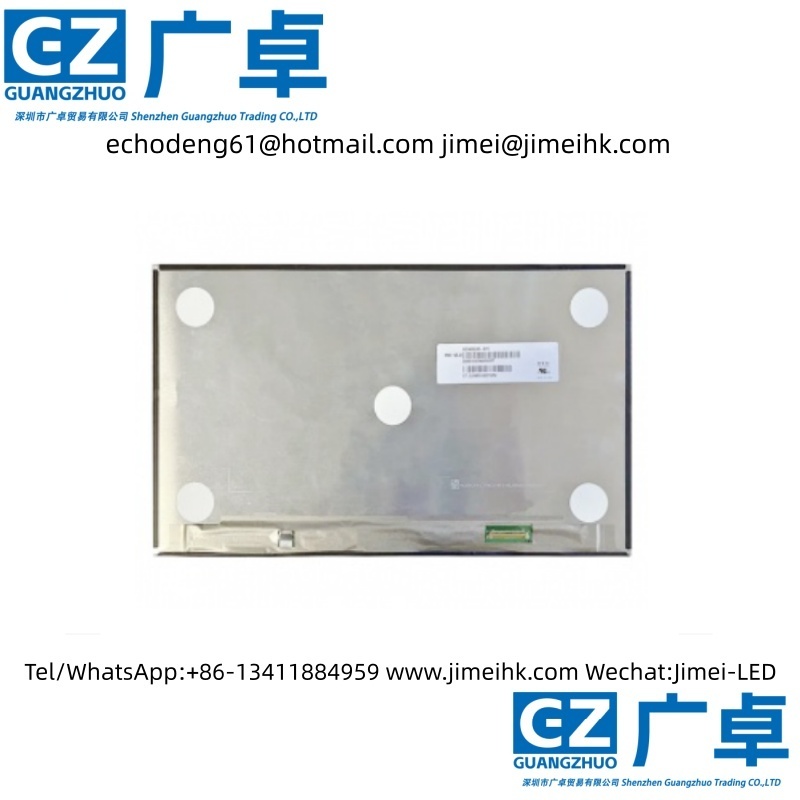

NE140QUM-N71 is a 14.0-inch LCD module product launched by BOE Technology Group Co., Ltd. (BOE), employing Oxide TFT-LCD technology. It is equipped with a WLED backlight and does not support touch functionality. The display resolution of the NE140QUM-N71 is 3840(RGB)×2160 (UHD),

with an aspect ratio of 16:9 (width:height). The pixels are arranged in a vertical stripe RGB pattern, and the pixel density calculated by the panel database is 315 PPI. The display area dimensions are 309.312×173.988 mm (width×height),

with a matte surface finish and Hard coating (3H). In terms of backlighting, this product uses a WLED side-edge light source. The NE140QUM-N71 adopts an eDP signal interface with a terminal connection. Its typical vertical refresh rate (Fv) is 60Hz.
