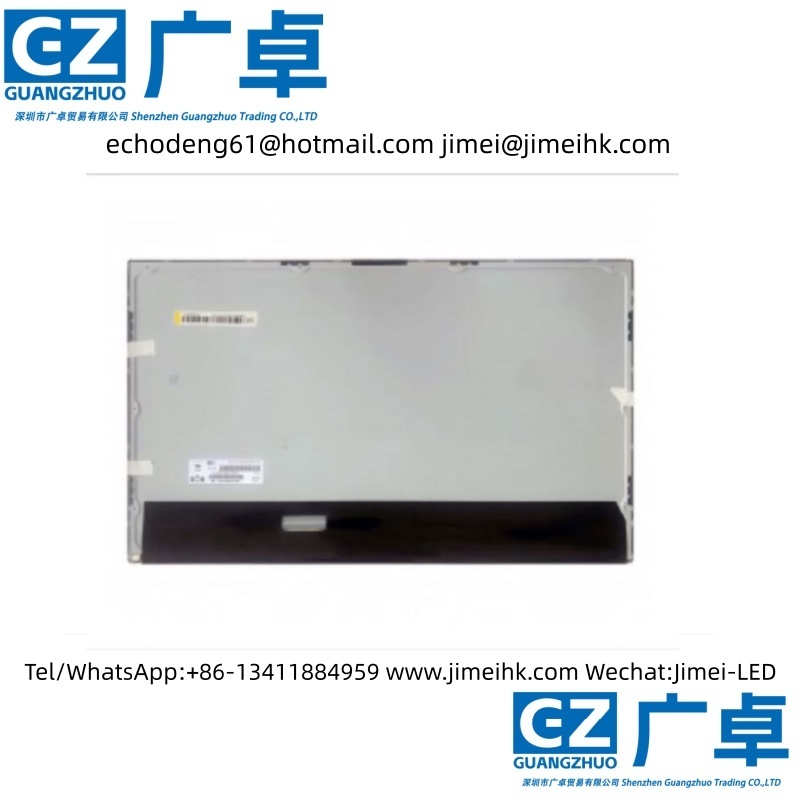

BOE’s MV238FHM-N30 is a 23.8-inch LCD module product featuring a-Si TFT-LCD technology. It is equipped with a WLED backlight, without a backlight driver or touch functionality.

Typical features include: white LED backlight, inverted terminals, matte surface, and a caution notice regarding Side Mounting, Rear Mounting, or Side+Rear Mounting. Its operating temperature ranges from 0 to 50°C, with a storage temperature of -20 to 60°C. This model is suitable for application in computer monitors.

The MV238FHM-N30 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width:height), and uses an RGB vertical stripe pixel arrangement. Its display area measures 527.04 × 296.46 mm (width × height), the viewable area is 530.2 × 299.6 mm (width × height), and the overall dimensions are 540.2 mm (width) × 315.6 mm (height) × 14.2 mm (thickness). The surface treatment features a matte finish (Haze 25%) with a hard coating (3H). The product has a net weight of 2.24 kg (typical).For backlighting, this product uses a side-lit WLED light source (bottom-mounted) with 3 strings, offering a lifespan of 30,000 hours. The backlight driver is not included.The MV238FHM-N30 utilizes an LVDS (2 ch, 8-bit) signal interface with a total of 30 pins, connected via a terminal. The typical drive voltage is 5.0V. Its typical vertical refresh rate (Fv) is 75 Hz.
