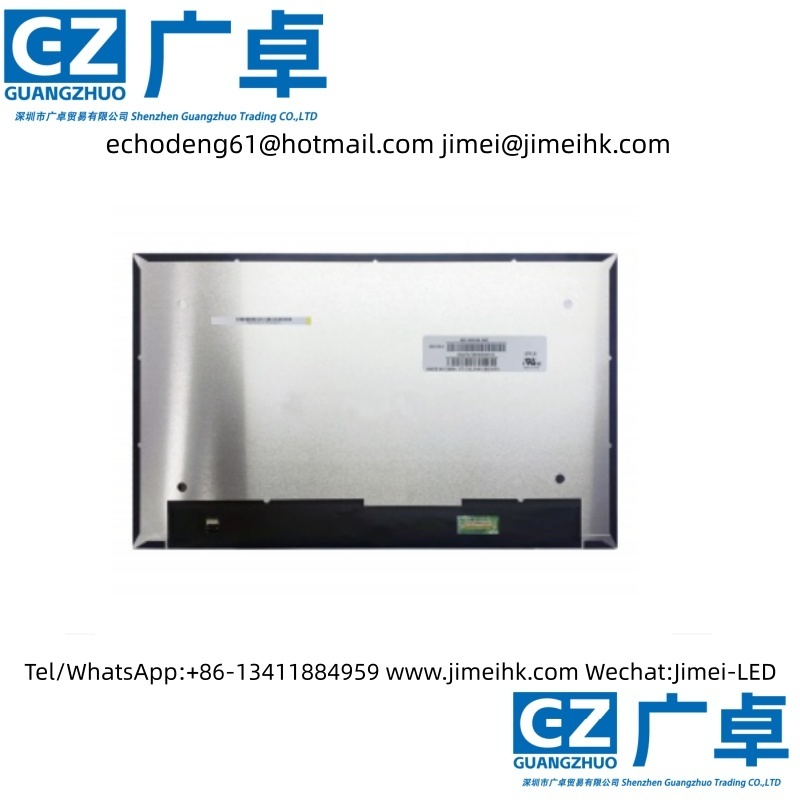

NE140FHM-N62 (Product Code: BOE0988) is a 14.0-inch Oxide TFT-LCD module launched by BOE, featuring WLED backlight with a built-in LED driver for backlight driving, and no touch function. The operating temperature range for this product is 0 to 50°C, and the storage temperature range is -20 to 60°C.

DCI-P3, sRGB, white LED backlight, includes LED driver, terminal flip-chip, 10-bit grayscale, matte surface, eDP 1.4T his model is used for products such as notebooks.

The NE140FHM-N62 display has a resolution of 1920 (RGB) × 1080 (FHD) with an aspect ratio of 16:9 (width:height), and its pixels are arranged in RGB vertical stripes. The active area measures 309.312 (width) × 173.988 (height) mm, while the overall dimensions are 314.31 (width) × 185.09 (height) × 3.8 (thickness) mm. The surface features a matte finish with Hard Coating (3H), and the product’s net weight is 200g (Max.). The exterior design is a slim panel (with PCBA bent, thickness ≤ 3.0mm).For backlighting, this product uses a 10S6P WLED edge-lit light source with a lifespan of 15K hours, including an LED driver. The NE140FHM-N62 adopts an eDP (2 Lanes) signal interface with a total of 30 pins, connected via terminals, and operates at a drive voltage of 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
