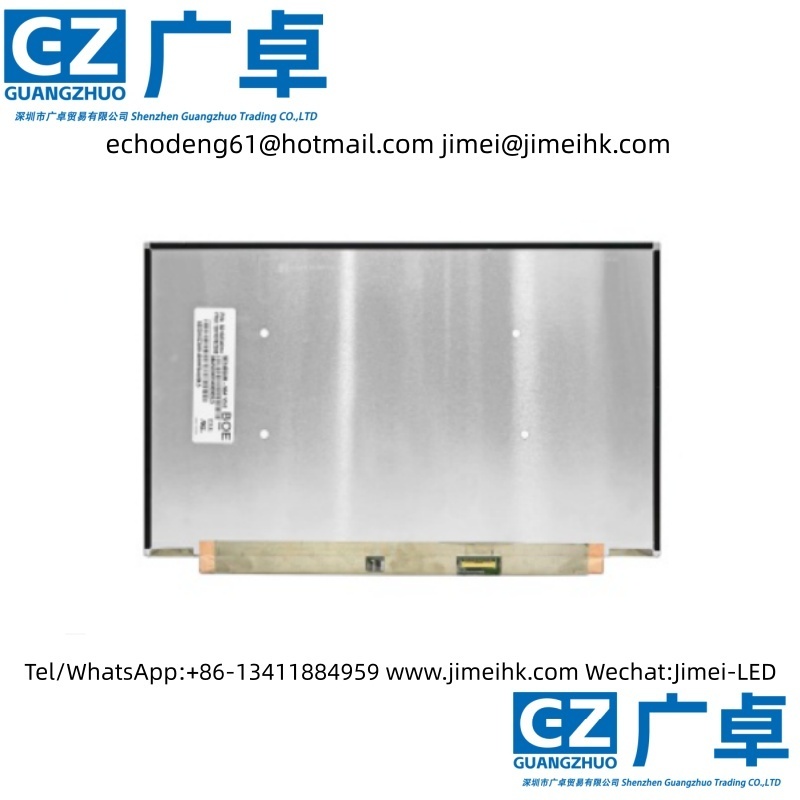

NE140QUM-N61 (Product Code: BOE08CE) is a 14.0-inch liquid crystal module launched by BOE Technology Group Co., Ltd. (BOE), which adopts Oxide TFT-LCD technology. It is equipped with a WLED backlight, including an LED driver for backlight driving, and does not feature touch functionality.

The NE140QUM-N61 features a display resolution of 3840 (RGB) × 2160 (UHD) with an aspect ratio of 16:9 (width: height). The pixel arrangement follows an RGB vertical stripe pattern, and the screen’s pixel density, as calculated by the panel database, is 315 PPI. Its active display area measures 309.312 × 173.988 mm (width × height), while the overall module dimensions are 315.01 × 195.67 × 2.3 mm (width × height × thickness). The surface treatment is matte with a Hard coating (3H). The product has a net weight of 220g (Max.) and features a slim profile design (with a flat PCBA and thickness ≤ 3.2mm).For backlighting, this product utilizes a 10S8P WLED edge-light system (bottom side) with a lifespan of 15K hours, inclusive of an LED driver. The NE140QUM-N61 adopts an eDP (4 Lanes) signal interface with a total of 40 pins, employing a connector terminal. The driving voltage is 3.3V (Typ.), and its typical vertical refresh rate (Fv) is 60Hz.

Its operating temperature ranges from 0 to 50°C, with a storage temperature of -20 to 60°C. Based on its features, including DCI-P3, sRGB, HDR400, white LED backlight with integrated LED driver, flip-chip bonding, 10-bit grayscale, matte surface, eDP1.3, PSR, HDR400, and DCI-P3 100% coverage, this model is recommended for use in notebooks
