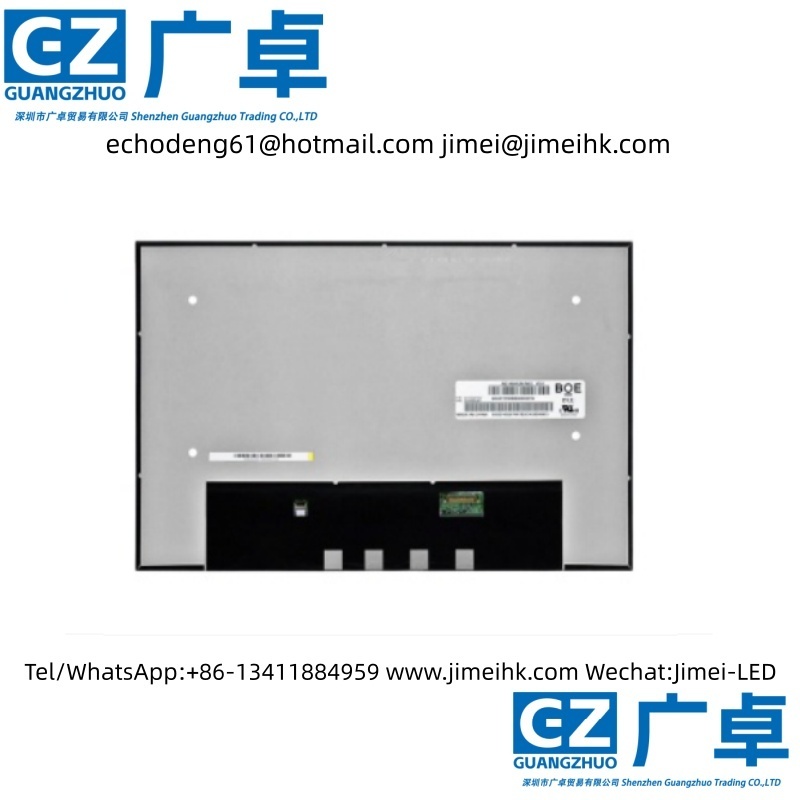

NE140WUM-N62 (Product Code: BOE094C) is a 14.0-inch LCD module product launched by BOE Technology Group Co., Ltd. (BOE) utilizing Oxide TFT-LCD technology. It is equipped with WLED backlight, including an LED driver for backlight driving, and does not support touch functionality.

The NE140WUM-N62 features a display resolution of 1920(RGB)×1200 (WUXGA), with an aspect ratio of 16:10 (width:height) and pixel arrangement in RGB vertical stripes. Its active display area measures 301.594×188.496 mm (width×height), while the overall module dimensions are 306.594×197.6 mm (width×height) with a thickness of 4.5 mm. The surface finish is matte with Hard Coating (3H hardness), and the product’s net weight is 200g (maximum). Its appearance is designed as a slim panel (with PCBA bending, thickness ≤3.0mm).For backlighting, this product utilizes a side-edge WLED light source in an 11S7P configuration, offering a service life of 15K hours, and includes an LED driver. The NE140WUM-N62 adopts an eDP (2 Lanes) signal interface with a total of 30 pins, connected via a connector. The driving voltage for the panel is 3.3V (typical), and its typical vertical refresh rate (Fv) is 60Hz.
