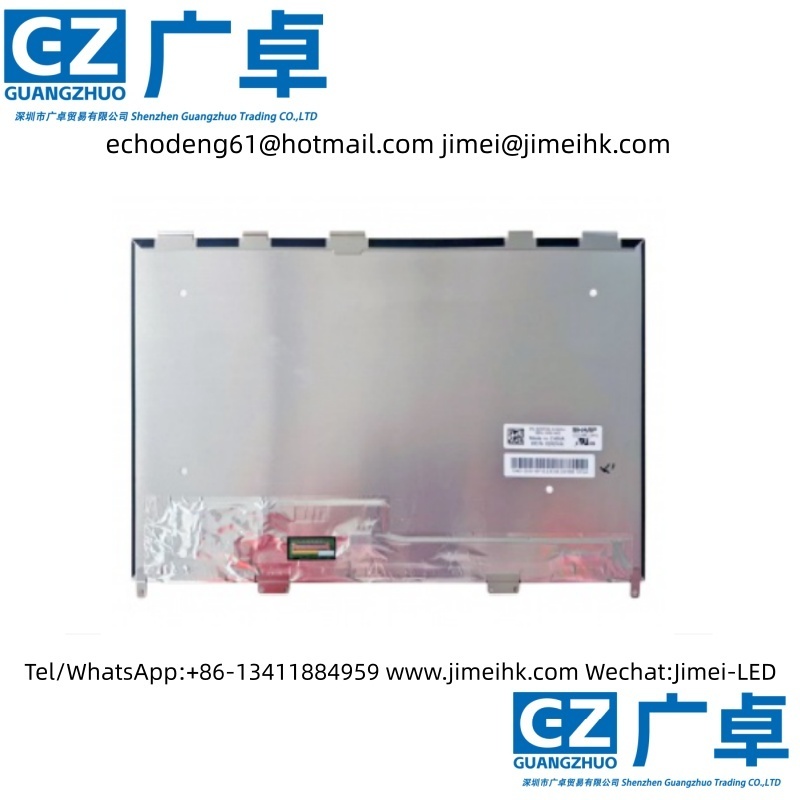

The LQ134R1JX41 from Sharp is a 13.4-inch liquid crystal module that utilizes Oxide TFT-LCD technology. It is equipped with WLED backlight, including an LED driver for backlight operation, and does not feature touch functionality.
sRGB, white LED backlight, includes LED driver, reverse-mounted terminals, surface mirror finish, eDP 1.4b (8.1/5.4) Gbps / 4 lanes. Its operating temperature is 0 ~ 50 °C, storage temperature is -25 ~ 60 °C, and vibration resistance is 1.0G (9.8 m/s²). This model is suitable for laptops.

The LQ134R1JX41 features a display resolution of 3840 (RGB) × 2400 (WQUXGA), with an aspect ratio of 16:10 (width:height). The pixels are arranged in a vertical RGB stripe pattern, and the screen library calculates a pixel density of 338 PPI. The display area measures 288 × 180 mm (width × height), with a glossy surface treatment (Haze 0%) and hard coating. The product’s net weight is 193/208g (Typ./Max.), and it adopts a slim-screen design (PCBA folded, thickness ≤ 3.0mm).For backlighting, this product utilizes a WLED edge-lit light source with a lifespan of 15K hours, including an LED driver. The LQ134R1JX41 uses an eDP (4 Lanes) signal interface with a total of 40 pins, connected via terminals, and the driving screen voltage is 3.3V (Typ.).
