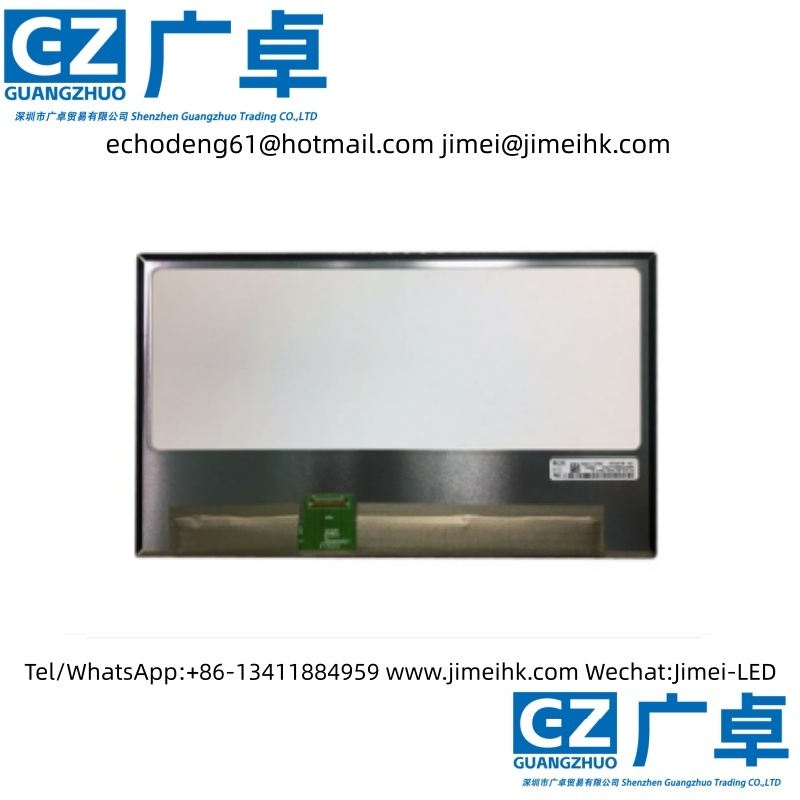

BOE’s NV125FHM-N51 is a 12.5-inch LCD module that adopts a-Si TFT-LCD technology. It is equipped with WLED backlight, includes an LED driver for backlight driving, and does not have touch functionality.

White LED backlight, including LED driver, inverted terminal, surface mirror, eDP1.3. Its operating temperature is 0–50°C, storage temperature is –20–60°C, and vibration resistance is 1.5G (14.7 m/s²). This model is suitable for application in notebooks.

The NV125FHM-N51 features a display resolution of 1920(RGB)×1080 (FHD) with an aspect ratio of 16:9 (width:height), and its pixels are arranged in a vertical stripe RGB configuration. The active display area measures 276.48×155.52 mm (width×height), while the overall module dimensions are 290.5 (width)×170.7 (height)×4.35 (thickness) mm. The surface finish is glossy (Haze 0%), and the product’s net weight is 230g (Max.). Its appearance style is slim screen (with PCBA bending, thickness ≤3.0mm).For backlighting, this product utilizes a 5S6P WLED edge-lit light source with a lifespan of 15K hours, including an LED driver. The NV125FHM-N51 adopts an eDP (2 Lanes) signal interface with a total of 30 pins, connected via terminals, and operates with a typical drive voltage of 3.3V. Its typical vertical refresh rate (Fv) is 60Hz.
