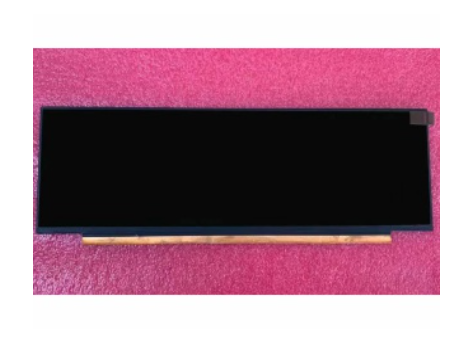

BOE (BOE) has launched the NV140XTM-N52 (Product Code: BOE085F BOE0A68), a 14.1-inch LCD module that utilizes a-Si TFT-LCD technology. It is equipped with WLED backlight, includes an LED driver for backlight driving, and does not have touch functionality.

Typical features include: sRGB, white LED backlight with LED driver, ultra-wide screen, reverse-mounted terminals, designed for ASUS, eDP1.3, PSR, CABC, SDRRS. It operates at temperatures ranging from 0 to 60°C and can be stored at temperatures between -20 and 65°C. This model is suitable for laptops and segmented bar-type displays.

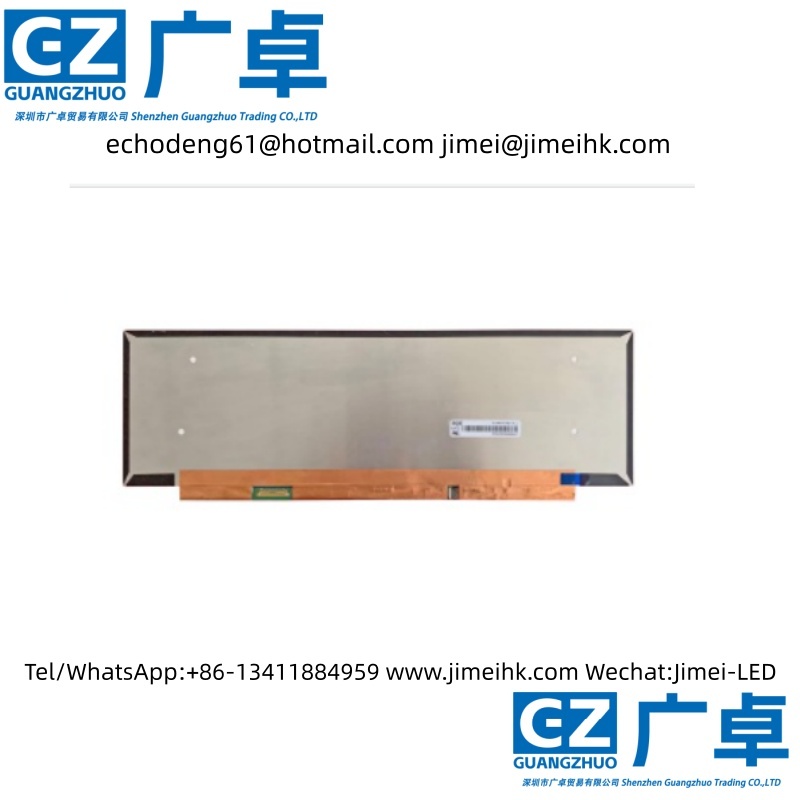

The NV140XTM-N52 display features a resolution of 3840 (RGB) × 1100, with an aspect ratio of >3:1 (width:height). The pixel arrangement follows an RGB vertical stripe layout, and the screen panel database calculates a pixel density of 283 PPI. The active display area measures 344.218 × 98.604 mm (width × height), while the overall external dimensions are 350.52 mm (width) × 118.65 mm (height) × 2.5 mm (thickness). The surface treatment includes a hard coating. The product’s net weight is 170g (maximum), and it features a slim screen design (with a straight PCBA and a thickness ≤3.2mm).For backlighting, this product uses a 10S6P WLED edge-lit light source (bottom side), with a rated lifetime of 15,000 hours. The module includes an LED driver. The NV140XTM-N52 adopts an eDP (2 lanes) signal interface with a total of 30 pins, connected via terminals, and operates with a typical driving voltage of 3.3V. Its typical vertical refresh rate (Fv) is 60Hz.
