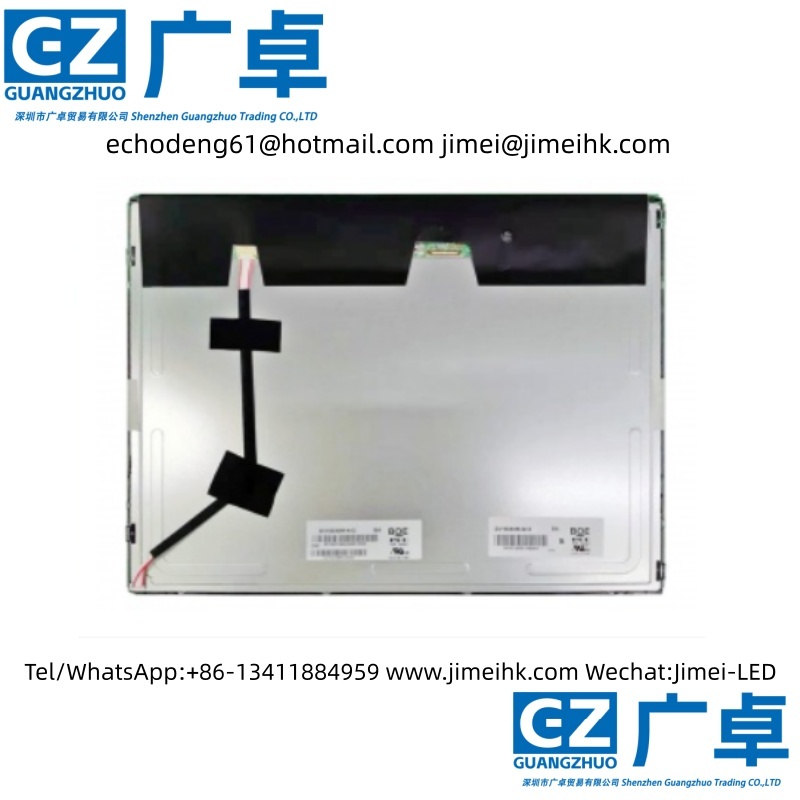

BOE’s DV150X0M-N12 is a 15.0-inch LCD module that utilizes a-Si TFT-LCD technology. It is equipped with a WLED backlight, including an LED driver for backlight driving, and does not have touch functionality.

Landscape mode / Portrait mode, white LED backlight with a lifespan exceeding 50,000 hours, includes an LED driver, matte surface. Its operating temperature is -20 to 70°C, storage temperature is -20 to 70°C, and vibration resistance is 1.5G (14.7 m/s²). This model is suitable for industrial and digital signage applications.

The DV150X0M-N12 features a display resolution of 1024(RGB)×768 (XGA) with an aspect ratio of 4:3 (width:height), and its pixels are arranged in RGB vertical stripes. The display area measures 304.128×228.096 mm (width×height), with a viewable size of 306.5×230.1 mm (width×height) and an overall dimension of 326.5×253.5×10 mm (width×height×thickness). The surface treatment includes an anti-glare matte finish (Haze 25%) and a hard coating (3H hardness), with a net product weight of 930g.For backlighting, this product uses a 12S4P WLED edge-lit light source (bottom-mounted) with a lifespan of 50,000 hours, including an LED driver. The DV150X0M-N12 adopts an eDP (1 Lane) signal interface with a total of 30 pins connected via terminals, and a driving screen voltage of 3.3V (typical). Its typical vertical refresh rate (Fv) is 60Hz.
