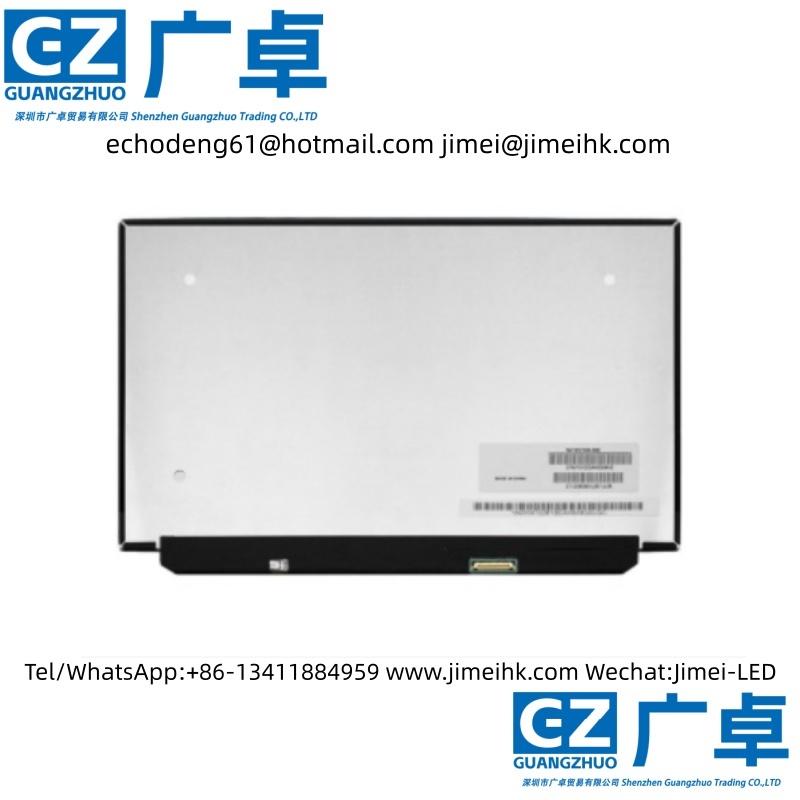

NV125FHM-N82 (Product Code: BOE0691) is a 12.5-inch a-Si TFT-LCD display module introduced by BOE. It features a WLED backlight with an LED driver for backlight driving and does not support touch functionality. The operating temperature range of this product is 0 to 50°C, with a storage temperature range of -20 to 60°C, and it can withstand vibration levels of up to 1.5G (14.7 m/s²)

White light LED backlight, includes LED driver, reverse-mounted terminals, matte surface

The NV125FHM-N82 display boasts a resolution of 1920 (RGB) × 1080 (FHD) with an aspect ratio of 16:9 (width:height), featuring RGB vertical stripe pixel arrangement. Its active area measures 276.48 (width) × 155.52 (height) mm, while the outline dimensions are 282.4 (width) × 179.32 (height) × 2.6 (thickness) mm. The surface treatment is matte, and the product has a net weight of 170g (Max.). The design is a slim panel (with flat PCBA and thickness ≤ 3.2mm).For the backlight, this product utilizes a 9S3P WLED edge-lit light source with a lifetime of 15K hours, including an LED driver. The NV125FHM-N82 employs an eDP (2 Lanes) signal interface with a total of 30 pins, using a connector terminal. The driving voltage is 3.3V (Typ.), and its typical vertical refresh rate (Fv) is 60Hz.
