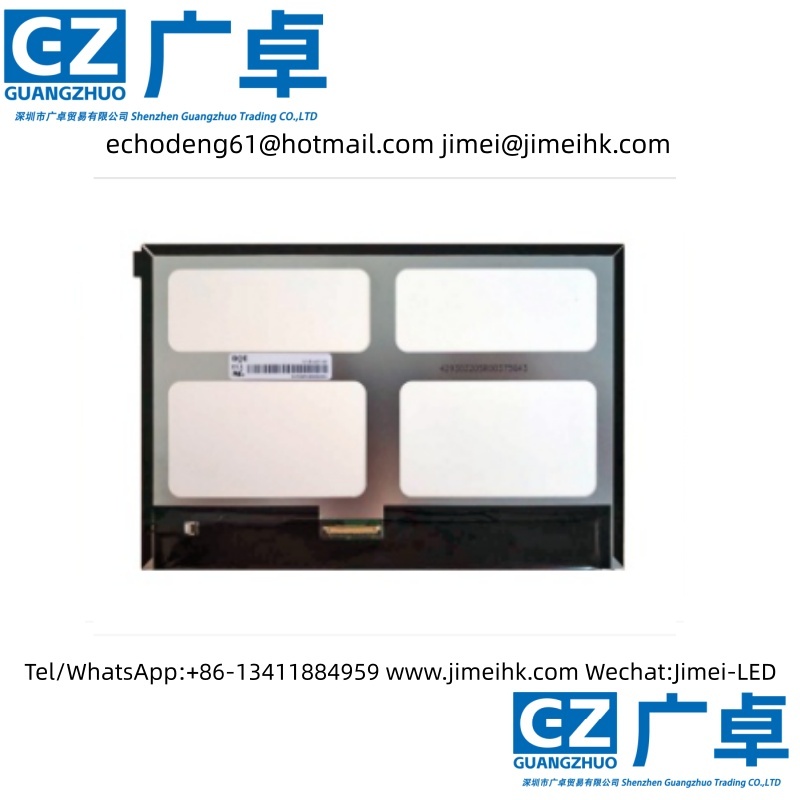

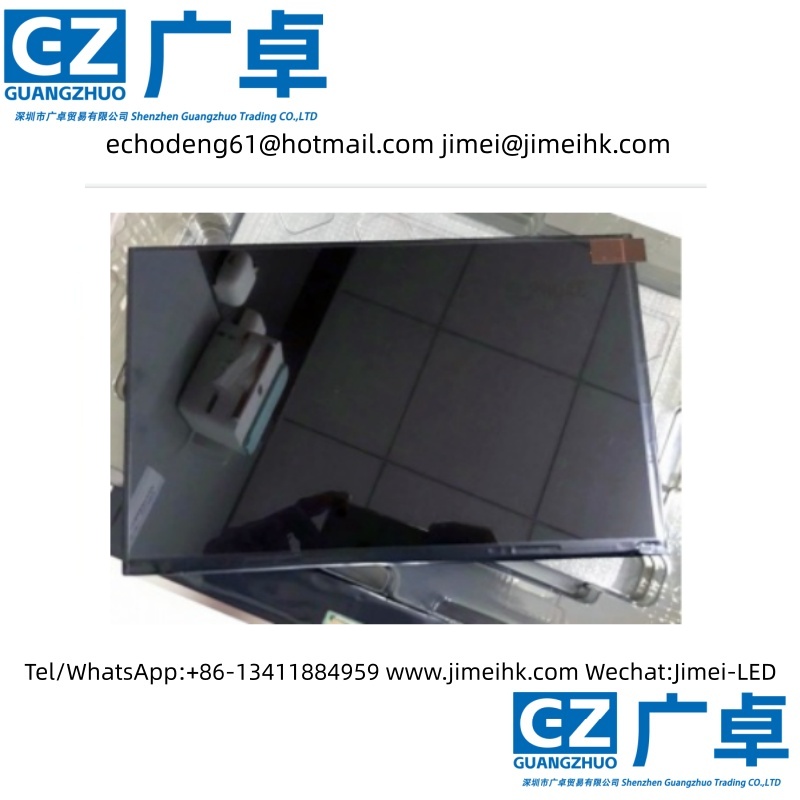

NV101WXM-N01 (Product Code: BOE0950) is a 10.1-inch LCD module launched by BOE Technology Group Co., Ltd. (BOE). It utilizes a-Si TFT-LCD technology, equipped with WLED backlight including an LED driver for backlight driving, and does not feature touch functionality

The NV101WXM-N01 has a display resolution of 1280 (RGB) × 800 (WXGA), an aspect ratio of 16:10 (width:height), and utilizes an RGB vertical stripe pixel arrangement. Its active display area measures 216.96 × 135.6 mm (width × height), with overall dimensions of 228.3 × 149.05 (width × height) × 4.7 (thickness) mm. The surface features an anti-reflection treatment, and the product has a net weight of 400g (Max.).For backlighting, this model employs a WLED edge-lit system (bottom side), with a light source lifetime of 15K hours, and includes an LED driver. The NV101WXM-N01 uses an LVDS (2 ch, 8-bit) signal interface with a total of 40 pins, connected via terminals, and a drive voltage of 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
