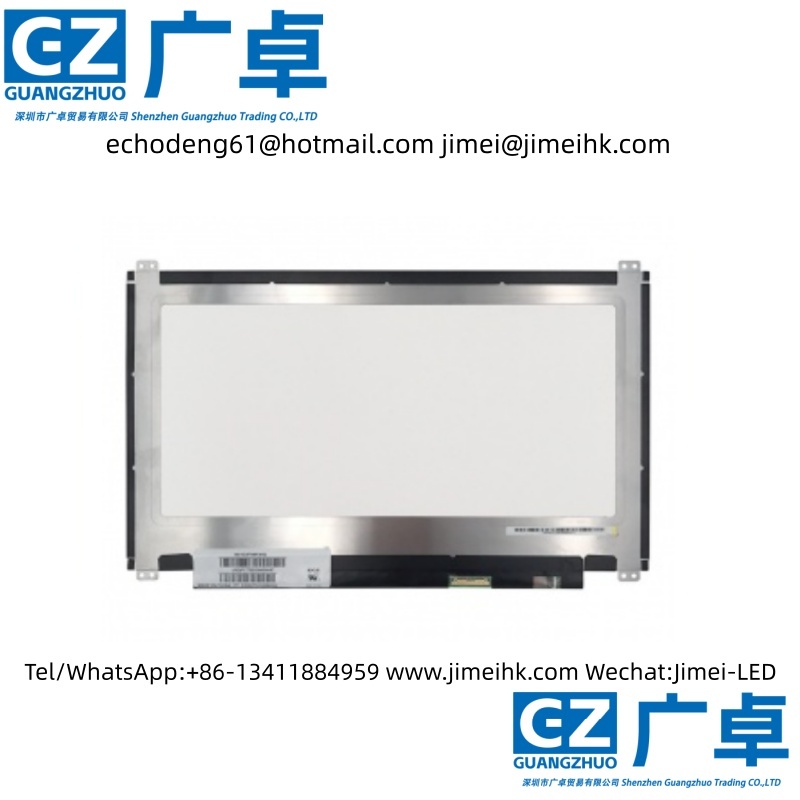

BOE’s NV133FHM-N42 (Product Code: BOE0701 BOE0717) is a 13.3-inch LCD module that utilizes a-Si TFT-LCD technology. It comes with WLED backlighting, includes an LED driver for backlight control, and does not feature touch functionality.

White LED backlight, including LED driver, reverse-mounted terminals, matte surface, eDP 1.2. Its operating temperature is 0 ~ 50°C, and storage temperature is -20 ~ 60°C. This model is suitable for application in notebook computers.

The NV133FHM-N42 features a display resolution of 1920(RGB) × 1080 (FHD) with an aspect ratio of 16:9 (width:height), and the pixels are arranged in RGB vertical stripes. Its active area measures 293.76 × 165.24 mm (width × height), while the overall dimensions are 306.3 (width) × 195.2 (height) × 2.85 (thickness) mm. The surface finish is matte, and the product’s net weight is 260g (Max.). The appearance style is a thin screen (with a flat PCBA and thickness ≤ 3.2mm).For backlighting, this product uses a side-lit WLED light source in an 8S4P configuration, with a light source lifespan of 15K hours, including an LED driver. The NV133FHM-N42 utilizes an eDP (2 Lanes) signal interface with a total of 30 pins, connected via terminals, and the driving voltage for the screen is 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
