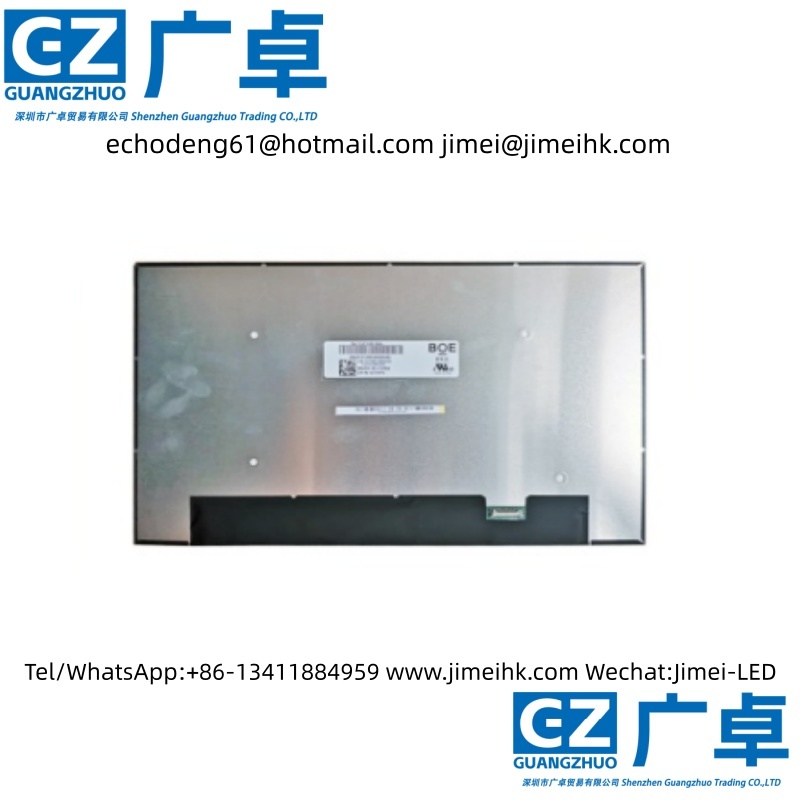

NV133FHM-N4A (Product Code: BOE0924) is a 13.3-inch a-Si TFT-LCD display module launched by BOE. It features WLED backlight with an integrated LED driver for backlight driving and does not support touch functionality. The operating temperature range for this product is 0 to 50°C, with a storage temperature range of -20 to 60°C, and it can withstand vibration of up to 1.5G (14.7 m/s²).

The NV133FHM-N4A features a display resolution of 1920 (RGB) × 1080 (FHD) with an aspect ratio of 16:9 (width:height), and the pixels are arranged in RGB vertical stripes. Its active area dimensions are 293.76 (width) × 165.24 (height) mm, while the outline dimensions are 300.26 (width) × 177.55 (height) × 4.5 (thickness) mm. The surface treatment is matte with Hard Coating (3H), and the product’s net weight is 220g (Max.). The appearance style is a thin panel (with PCBA bent, thickness ≤ 3.0mm).For the backlight, this product utilizes a 9S4P WLED edge-lit light source (bottom), with a light source lifetime of 15K hours, including an LED driver. The NV133FHM-N4A employs an eDP (2 Lanes) signal interface with a total of 30 pins, using a connector terminal, and the driving voltage for the screen is 3.3V (Typ.). Its typical vertical refresh rate, Fv, is 60Hz.
