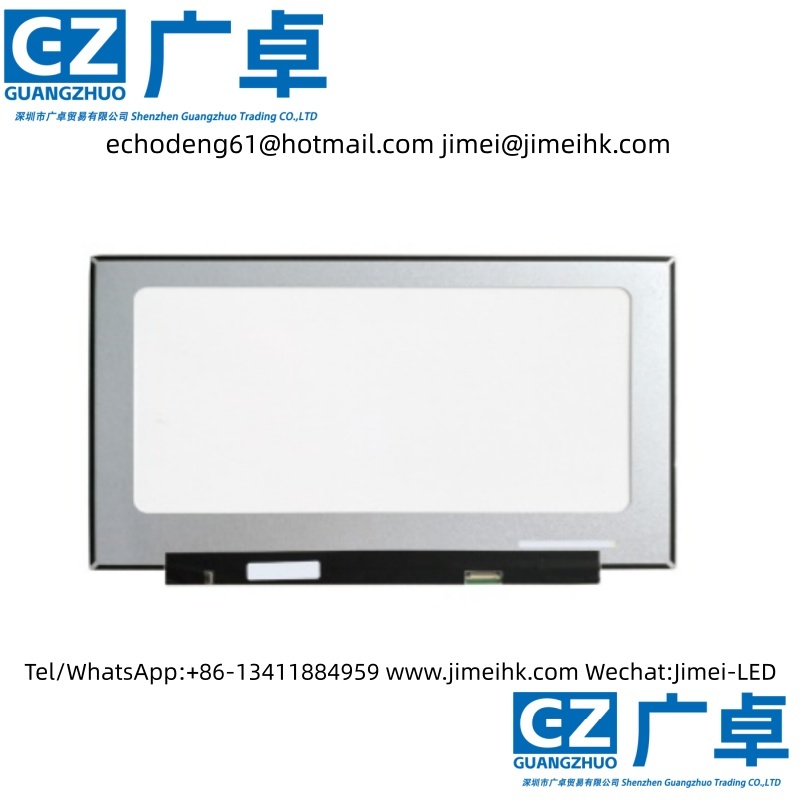

BOE’s NV173FHM-NY1 is a 17.3-inch LCD module that utilizes a-Si TFT-LCD technology. It is equipped with a WLED backlight, including an LED driver for backlight driving, and does not support touch functionality. According to the screen database, its typical features include: sRGB color gamut, 144Hz refresh rate, white LED backlight with an LED driver, reverse-mounted connectors, matte surface, and eDP 1.4 interface. It operates within a temperature range of 0 °C to 50 °C and can be stored in temperatures ranging from -20 °C to 60 °C. This model is suitable for use in notebooks and gaming applications.

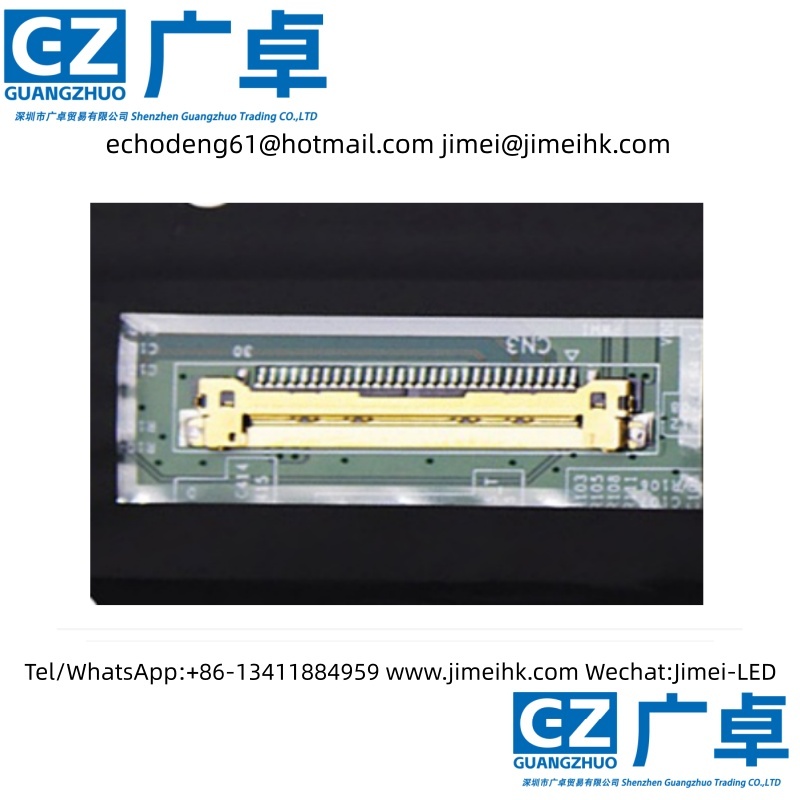

The NV173FHM-NY1 display has a resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and uses an RGB vertical stripe arrangement for its pixels. Its active area measures 381.888 × 214.812 mm (width × height), while the overall dimensions are 389.89 (width) × 238.012 (height) × 3.5 (thickness) mm. The surface features a matte finish with Hard Coating (3H). The product’s net weight is 550g (Max.), and it has a medium thickness form factor (flat PCBA, thickness 3.4~4.0mm).For the backlight, this product uses a 12S6P WLED edge-lit light source (bottom entry). The light source has a lifetime of 15K hours and includes an LED driver. The NV173FHM-NY1 utilizes an eDP (4 Lanes) signal interface with a total of 40 pins, connected via a connector. The driving voltage is 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 144Hz.
