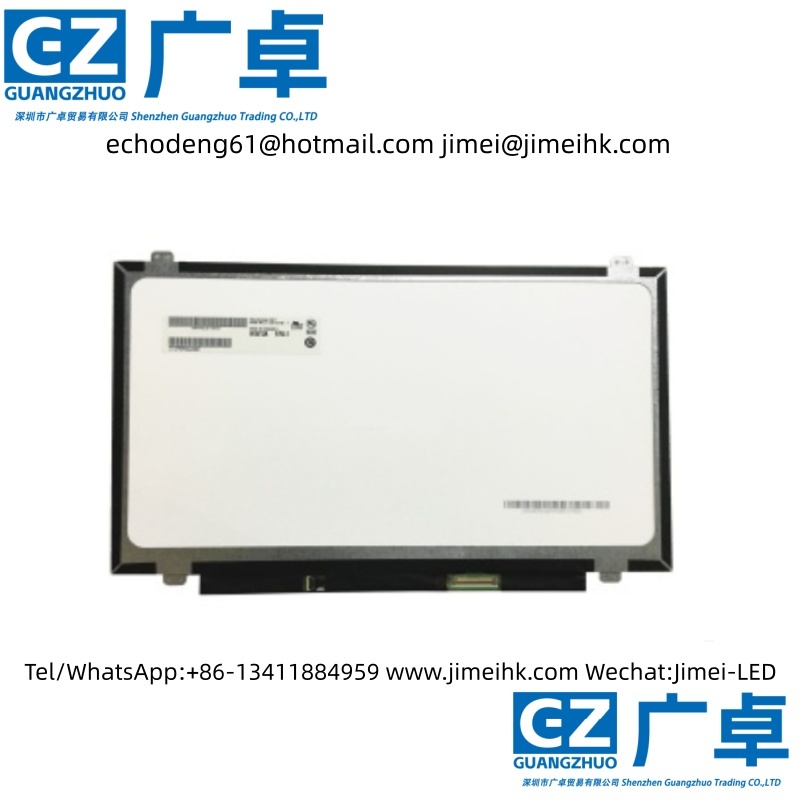

NT140WHM-N44 (Product Code: BOE0705) is a 14.0-inch a-Si TFT-LCD module launched by BOE. It is equipped with WLED backlight, including an LED driver for backlight driving, and does not support touch functionality. The operating temperature range of this product is 0 to 50°C, the storage temperature range is -20 to 60°C, and its vibration resistance is 1.5G (14.7 m/s²).

The NT140WHM-N44 features a display resolution of 1366 (RGB) × 768 (WXGA), with an aspect ratio of 16:9 (width:height) and pixels arranged in RGB vertical stripes. Its active area measures 309.399 mm (width) × 173.952 mm (height), while the overall dimensions are 315.9 mm (width) × 205.1 mm (height) × 3 mm (thickness). The surface treatment is matte, and the product’s net weight is 265g (Max.), designed as a slim panel (with a flat PCBA and thickness ≤ 3.2mm).For backlighting, this product utilizes an edge-lit 8S4P WLED light source with a lifespan of 15,000 hours, including an LED driver. The NT140WHM-N44 employs an eDP (1 Lane) signal interface with a total of 30 pins, connected via terminals, and operates with a drive voltage of 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
