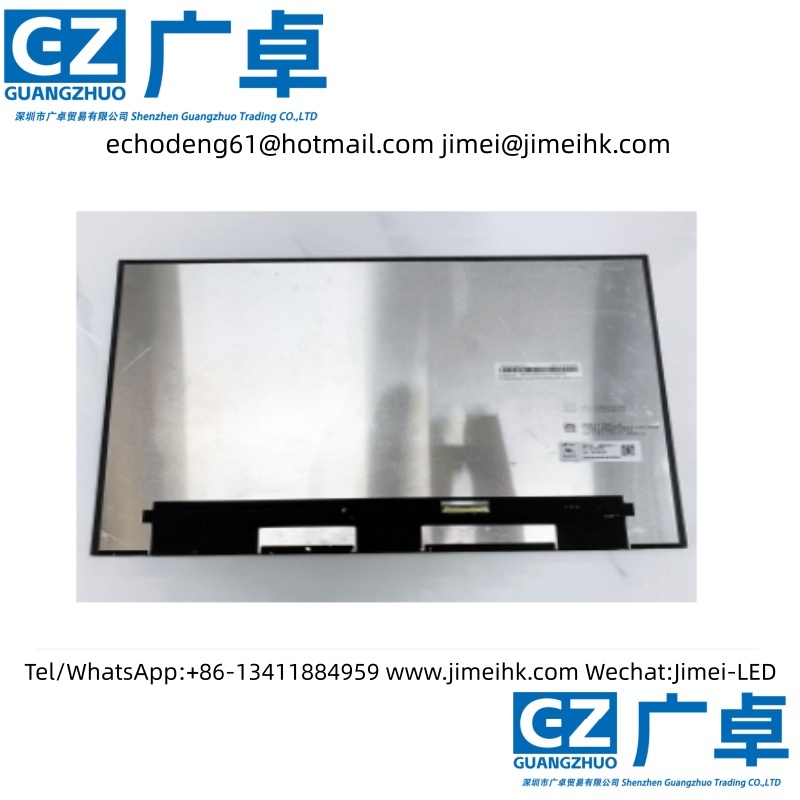

The MNG007ZA1-4 introduced by China Star Optoelectronics (CSOT) is a 16.0-inch LCD module employing LTPS TFT-LCD technology. It is equipped with a WLED backlight, integrated with an LED driver for backlight driving, and does not feature touch functionality. Panel specifications highlight its typical characteristics: 165Hz refresh rate, white LED backlight, built-in LED driver, reverse-mounted connectors, and 10-bit grayscale. The module operates within a temperature range of 0 °C to 50 °C, can be stored at temperatures from -20 °C to 60 °C, and has a vibration resistance of 1.5G (14.7 m/s²). This model is suitable for notebook applications.

The MNG007ZA1-4 has a display resolution of 3200(RGB)×2000, an aspect ratio of 16:10 (width:height), with pixels arranged in RGB vertical stripes. The pixel density calculated by the screen database is 235 PPI. Its display area dimensions are 344.678×215.424 mm (width×height), with a surface treatment of Hard coating (3H) and a thin-screen appearance (PCBA bent, thickness ≤3.0mm). In terms of backlight, this product uses a WLED edge-lit light source with a lifespan of 15K hours, including an LED driver. The MNG007ZA1-4 adopts an eDP (4 Lanes) signal interface, connected via terminals, with a driving screen voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 165Hz.
