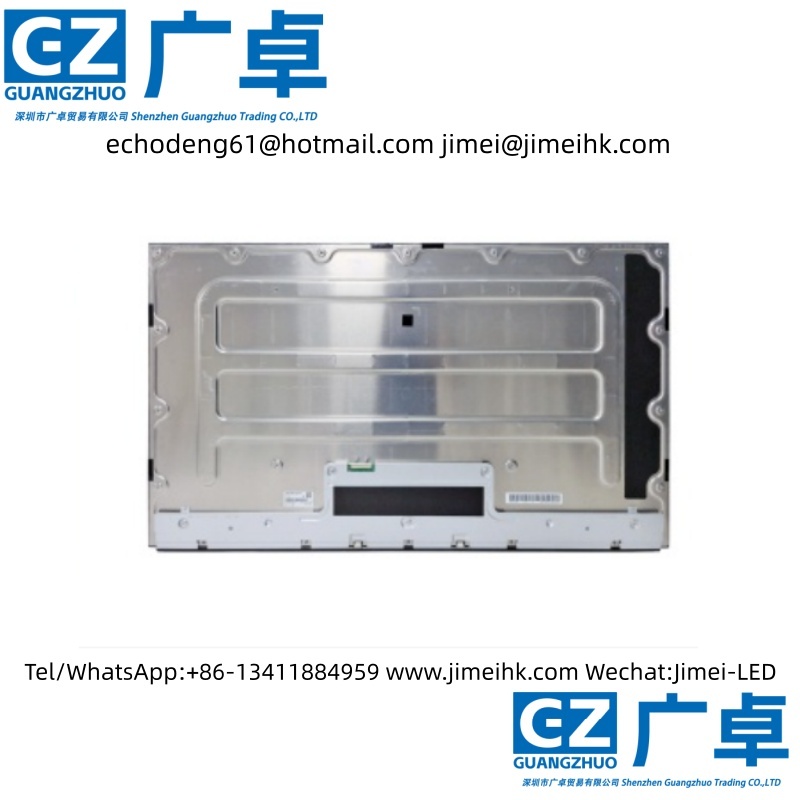

LM315WR7-SSA1 (Alternate P/N: LM315WR7 (SS)(A1)) is a 32.0-inch a-Si TFT-LCD module developed by LG Display. It incorporates a WLED backlight without a backlight driver and does not feature touch functionality. The operating temperature for this product ranges from 0 to 50°C, with a storage temperature of -20 to 60°C, and a vibration resistance of 1.0G (9.8 m/s²). Its key features, as summarized by the panel database, include: DCI-P3, sRGB, borderless design on all four sides, 120Hz refresh rate, white LED backlight, flip-chip bonding, 10-bit grayscale, and a matte surface finish.

The LM315WR7-SSA1 features a display resolution of 3840 (RGB) × 2160 (UHD) with an aspect ratio of 16:9 (width:height) and RGB vertical stripe pixel arrangement. Its display area dimensions are 697.306 mm (width) × 392.234 mm (height), and the overall dimensions are 709.4 mm (width) × 405.95 mm (height) × 16 mm (thickness). The surface treatment includes a matte finish (Haze 35%), hard coating (3H), and anti-reflective coating. The product’s net weight is 3.30/3.46 kg (typical/maximum).For backlighting, this product uses a side-lit light source (bottom) with 11S4P×2CN WLED illumination, offering a lifespan of 30,000 hours. The backlight driver is not included. The LM315WR7-SSA1 utilizes an eDP (8 Lanes) signal interface with a total of 60 pins, connected via terminals, and requires a driving voltage of 10.0 V (typical). Its typical vertical refresh rate (Fv) is 120 Hz.
