LG Display’s LM238WF5-SSH1 (also known as LM238WF5 (SS)(H1)) is a 23.8-inch LCD module product that utilizes a-Si TFT-LCD technology. It is equipped with WLED backlight, requires no backlight driver, and features In-Cell Touch. Panelook summarizes its typical characteristics as follows: three-side borderless design, integrated touch screen, white LED backlight, flip-mounted terminals, glossy surface, and panel type: Reverse type. It operates at temperatures ranging from 0 to 50°C and can be stored in temperatures from -20 to 60°C. This model is suitable for use in computer monitors.
LG Display’s LM238WF5-SSH1 (also known as LM238WF5 (SS)(H1)) is a 23.8-inch LCD module product that utilizes a-Si TFT-LCD technology. It is equipped with WLED backlight, requires no backlight driver, and features In-Cell Touch. Panelook summarizes its typical characteristics as follows: three-side borderless design, integrated touch screen, white LED backlight, flip-mounted terminals, glossy surface, and panel type: Reverse type. It operates at temperatures ranging from 0 to 50°C and can be stored in temperatures from -20 to 60°C. This model is suitable for use in computer monitors.
According to the Version 1.0 product specification released by LG Display on February 26, 2020, the LM238WF5-SSH1 display has a resolution of 1920(RGB)×1080 (FHD) with a 16:9 aspect ratio (width:height), and its pixels adopt an RGB vertical stripe arrangement. The active area dimensions are 527.04×296.46 mm (width×height), and the overall module dimensions are 535.24 mm (width)×313.63 mm (height)×11.21 mm (thickness). The surface treatment features a glossy finish (Haze 0%) with Hard coating (3H). The product’s net weight is 2.24/2.36 kg (Typ./Max.). For the backlight, this product utilizes a bottom-edge type WLED light source with a 15S4P configuration, offering a lifespan of 30K hours. The backlight driver is not included. The LM238WF5-SSH1 uses an LVDS (2 ch, 8-bit) signal interface with a total of 30 pins, connected via terminals. The driving voltage is 5.0V (Typ.), and its typical vertical refresh rate (Fv) is 75hz
LM238WF5-SSH1 FHD IPS 窄边LED 液晶显示器屏幕

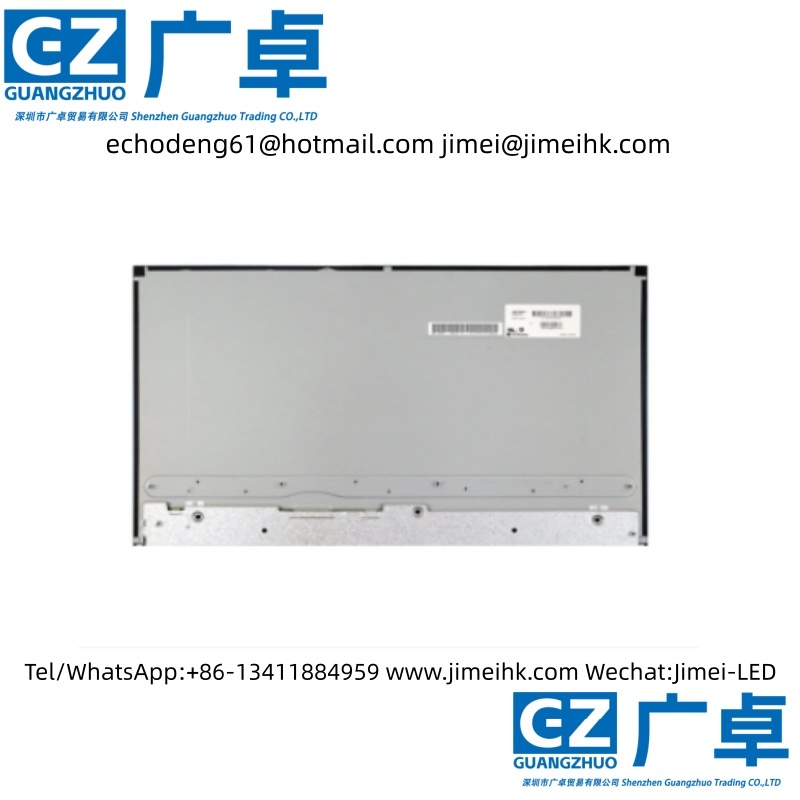

LM238WF5-SSH1
面板品牌：LG Display (LG Display)
面板型号：LM238WF5-SSH1
面板尺寸：23.8英寸
面板类型 ：a-Si TFT-LCD, 液晶模组
分辨率 ：1920(RGB)×1080, FHD, 92PPI
像素布局 ：RGB垂直条状
显示区域 ：527.04(W)×296.46(H) mm
外观尺寸：535.24(W)×313.63(H)×11.21(D) mm
表面处理：镜面 (Haze 0%)，Hard coating (3H)
面板亮度：250 cd/m² (Typ.)
对比度： 1000:1 (Typ.) (TM)
可视角度： 89/89/89/89 (Typ.)(CR≥10) 左 / 右 / 上 / 下
工作模式： IPS，常黑显示，透射式
视角方向： 全视角
反应时间： 14 (Typ.)(G to G) ms
显示颜色： 16.7M
光源类型： 15S4P WLED , 30K小时 , 不含驱动
工作频率： 75Hz
电路 ： 触摸屏 In-Cell Touch, USB
面板重量： 2.24/2.36Kgs (Typ./Max.)
面板应用： 电脑显示器
信号接口： LVDS (2 ch, 8-bit) , 30 pins , 端子
驱屏电压： 5.0V (Typ.)
工作环境： 工作: 0 ~ 50 °C ; 存储: -20 ~ 60 °C
