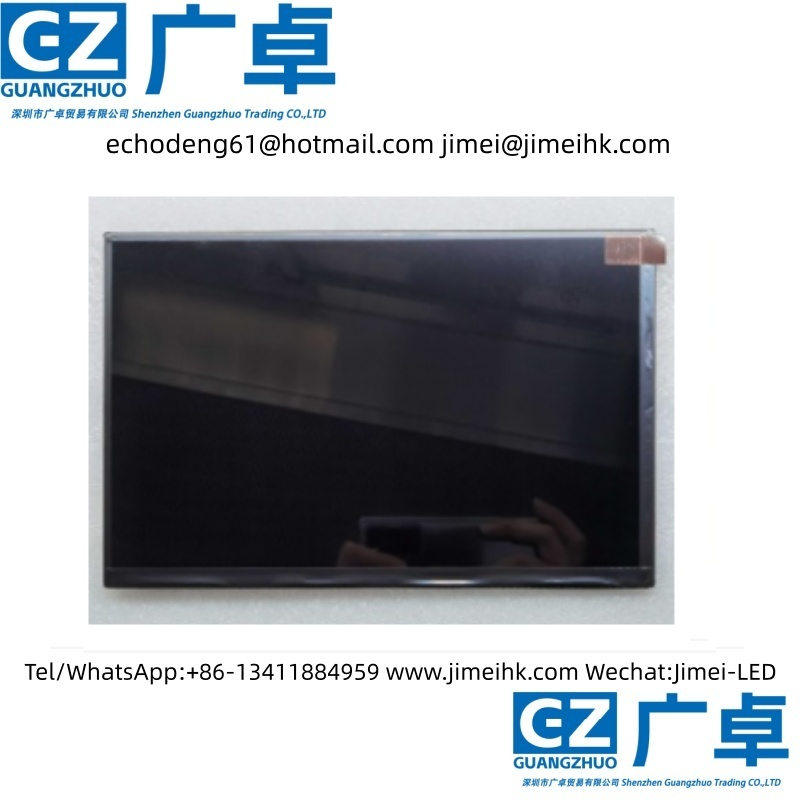

EV101WXM-N10 is a 10.1-inch a-Si TFT-LCD module launched by BOE (BOE), equipped with WLED backlight including an LED driver for backlight drive, and does not support touch functionality. The operating temperature range of this product is -20 to 70°C, with a storage temperature range of -30 to 70°C. Its typical features, as summarized by the panel database, include a white LED backlight with an integrated LED driver. Based on its characteristics, the panel database recommends this model for applications in industrial, healthcare, and related products.
The EV101WXM-N10 features a display resolution of 1280 (RGB) × 800 (WXGA), with an aspect ratio of 16:10 (width:height) and RGB vertical stripe pixel arrangement. Its active area measures 216.96 (width) × 135.6 (height) mm, while the overall dimensions are 228.6 (width) × 149.2 (height) × 6 (thickness) mm, with a net weight of 175 ± 20g. This product utilizes WLED edge-lit backlighting with a lifespan of 30K hours, including an LED driver. The EV101WXM-N10 adopts an LVDS (1 channel, 8-bit) signal interface with a total of 40 pins, connected via terminals, and requires a driving voltage of 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
EV101WXM-N10 is a 10.1-inch a-Si TFT-LCD module launched by BOE (BOE), equipped with WLED backlight, including an LED driver for backlight driving, and without touch functionality. The operating temperature of this product ranges from -20°C to 70°C, and its storage temperature ranges from -30°C to 70°C. Its typical features, as summarized by the panel database, include a white LED backlight with an integrated LED driver. Based on these characteristics, the panel database recommends this model for applications in industrial, healthcare, and similar products.
