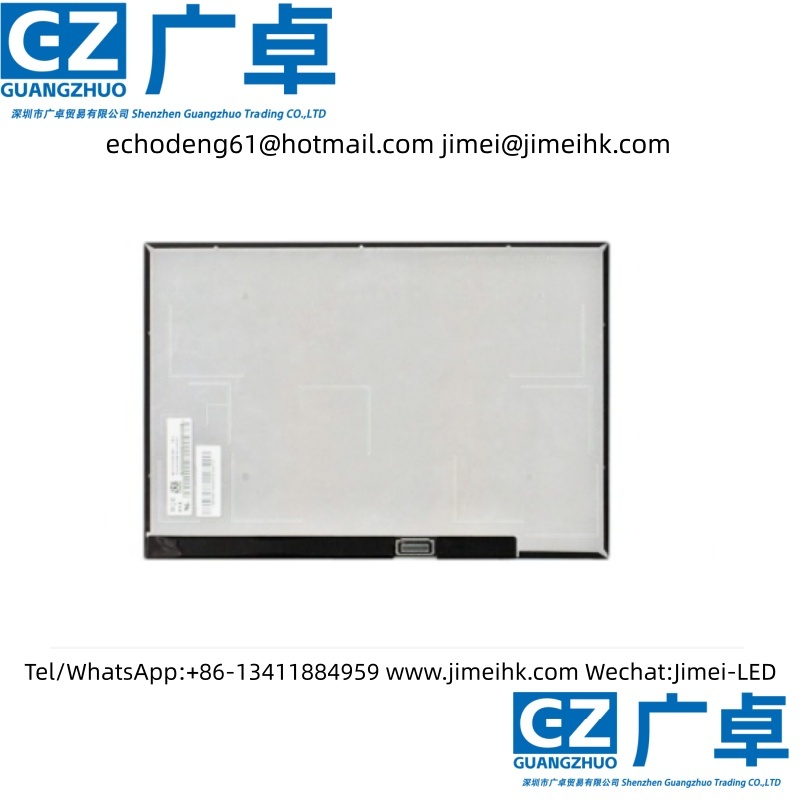

NV105WAM-N31 (Product Code: BOE088B) is a 10.5-inch LCD module developed by BOE Technology Group Co., Ltd. (BOE) utilizing a-Si TFT-LCD technology. It incorporates a WLED backlight without a backlight driver and does not support touch functionality. According to the product specification document (Version Rev.0) released by BOE on December 10, 2019, the NV105WAM-N31 features a display resolution of 1920(RGB)×1280, an aspect ratio of 15:10 (width:height), and RGB vertical stripe pixel arrangement. The pixel density, as calculated by the display database, is 219 PPI. The active area measures 222.048×148.032 mm (width×height), while the overall dimensions are 227.048×157.732×4.5 mm (width×height×thickness). The screen surface treatment includes Hard coating (2H), and the net weight of the module is 115g (Max.). It adopts a slim design with PCBA bending (thickness ≤3.0mm).For backlighting, this module uses a side-edge WLED light source with a configuration of 9S5P, offering a lifespan of 15,000 hours. It does not include a backlight driver. The NV105WAM-N31 employs an eDP (2 Lanes) signal interface with a total of 50 pins connected via terminals. The driving voltage for the panel is 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
