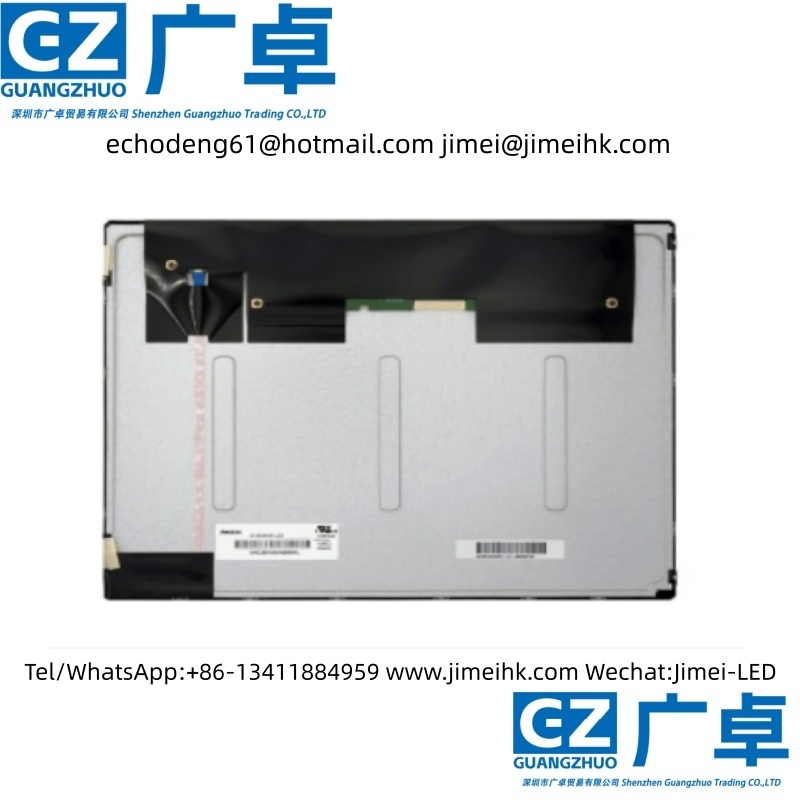

The G150XNE-L03 launched by Innolux is a 15.0-inch LCD module utilizing a-Si TFT-LCD technology. It incorporates a WLED backlight with an LED driver for backlight driving and does not support touch functionality. Panelook summarizes its key features as follows: white LED backlight with a lifespan exceeding 70,000 hours, built-in LED driver, forward-mounted terminals, 180-degree flip display, 6/8-bit gray scale options, and a matte surface. Its operating temperature ranges from -20 to 70°C, storage temperature from -30 to 70°C, and vibration resistance up to 1.5G (14.7 m/s²). This model is suitable for industrial and gaming applications.

The G150XNE-L03 display has a resolution of 1024 (RGB) × 768 (XGA), with an aspect ratio of 4:3 (width:height), and the pixels are arranged in RGB vertical stripes. Its active area size is 304.128 × 228.096 (width × height) mm, the viewable area size is 307.4 × 231.3 (width × height) mm, and the overall dimensions are 326.5 (width) × 253.5 (height) × 9.6 (thickness) mm. The surface treatment features an anti-glare matte finish with hard coating (3H hardness). The net weight of the product is 0.96/1.00 kg (Typ./Max.).For backlighting, this product uses edge-lit WLEDs as the light source, with a lifespan of 70K hours, and includes an LED driver. The G150XNE-L03 adopts an LVDS (1 channel, 6/8-bit) signal interface, with a total of 20 pins connected via terminals. The driving voltage is 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
