The N140HCE-EAA (Product Code: CMN14B1) is a 14.0-inch a-Si TFT-LCD module developed by Innolux. It incorporates a WLED backlight with an LED driver for backlight driving and does not support touch functionality. This module operates at temperatures ranging from 0 to 50°C and can be stored in temperatures between -20 and 60°C. It has a vibration resistance of 1.5G (14.7 m/s²). Key features summarized by the panel database include: white LED backlight with an LED driver, flip-mounted terminals, matte surface, and eDP1.2 interface. Based on these characteristics, the database recommends this model for applications such as laptops.

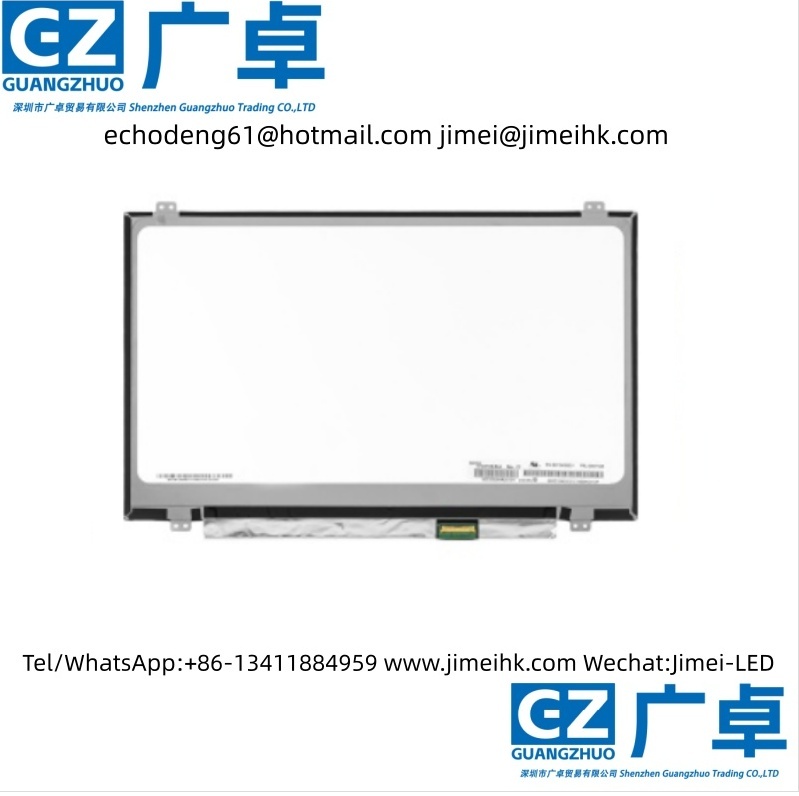

N140HCE-EAA FHD LED 液晶显示器屏幕
N140HCE-EAA
面板品牌
群创 (Innolux)
面板型号
N140HCE-EAA
面板尺寸
14.0英寸
面板类型
a-Si TFT-LCD, 液晶模组
分辨率
1920(RGB)×1080, FHD, 157PPI
像素布局
RGB垂直条状
显示区域
308.851(W)×173.73(H) mm
外观尺寸
320.4(W)×205.1(H)×3(D) mm
–
250 cd/m² (Typ.)
全视角
89/89/89/89 (Typ.)(CR≥10)
262K , 45% NTSC
薄屏 (PCBA平直, 厚度≤3.2mm)
60Hz
适用于
触摸屏
雾面，Hard coating (3H)
700 : 1 (Typ.) (透射)
AAS，常黑显示，透射式
14/11 (Typ.)(Tr/Td) ms
4 strings WLED , 15K小时 , 含LED驱动器
无触摸
eDP (2 Lanes) , eDP1.2 , 端子 , 30 pins
3.3V (Typ.)
存储温度: -20 ~ 60 °C 工作温度: 0 ~ 50 °C
适用范围：兼容各种商显示，广告机，TV电视，各品牌电脑，工业设备，医疗设备，车载电视等
